Four Flutes Tungsten Carbide End Mill For Steel AlTiN Or TiTiN Coated

Product Details:
Place of Origin: MADE IN CHINA
Brand Name: KTC
Certification: CCC
Model Number: E600
Payment & Shipping Terms:
Minimum Order Quantity: 10 pcs
Price: Negotiation
Packaging Details: 1PC/ PVC Packing, 10pcs PVC Packing/Pack...
Delivery Time: 1-35days
Payment Terms: T/T, L/C,Paypal...
Supply Ability: 10000pcs/week

Detail Information

Product Name: Four Flutes Tungsten Carbide End Mill For Steel AlTiN Or TiTiN Coated Raw Material: GU25UF
Coating: AlTiN Or TiSiN Color: Black/Copper
Hardness: >92HRA Cutting Diameter: Based On The Flute Length
Precision: High Precision Co: 12%
Grain Size: 0.4 μm Flutes No.: 4 Flutes
High Light:

hard milling end mills

,

solid carbide end mill

Product Description

Four Flutes Tungsten Carbide End Mill For Steel AlTiN Or TiTiN Coated





Our Service Principle:

1. Service as the basis, quality as the survival, science and technology for development

2, Customer first, attentive service

3. Solve quality problems within three hours

4, Professional customization, strive to become a quality supplier, customer satisfaction as the goal

5. Create the best products and services based on talents and technology



Specifications



E600 high performance milling cutter series is made of domestic well-known high-quality fine grain tungsten steel material, with flexural strength of 4300mpa and grain size of 0.4 μm, and is coated with AlTiN or TiSiN imported from Switzerland. The cutter is designed with large helix angle, which can realize high-speed and efficient machining, especially suitable for medium and high carbon steel, die steel, pre-hardened steel and other materials processing. With high precision quality control, and full inspection, all E600 series end mills are delivered with 100% qualification rate.



Material GU25UF
WC 88%
Co 12%
TRS >4300N/mm2
Hardness >92HRA
A.O.L 50mm-150mm
Grain size 0.4μm
Upto HRC60
Flutes No 4 Flutes
Coating AlTiN or TiSiN
Suitable for Steel,stainless steel,nickel alloy,Titanuim alloy,cast iron,plastic and other materials

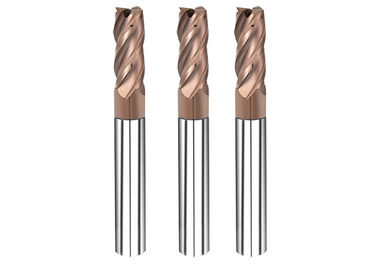

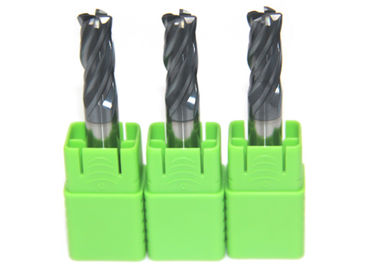

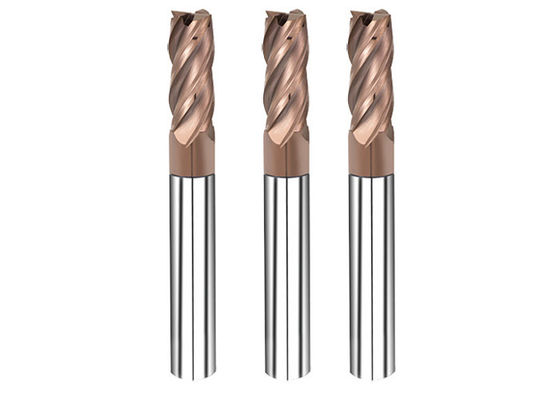

Four Flutes Tungsten Carbide End Mill For Steel AlTiN Or TiTiN Coated 0

Coating:

Item AlTiN TiSiN
Hardness(HV): 3200 3600
Thickness(μm): 2.5-3 3
Oxidation Temp(°): 900 1000
frictional Coefficient: 0.3 0.45
Color: Black Copper



Standard Sizes

Size Flute Length of End Mills(mm)
Flat end Ball Nose Round nose
D1*D4*50 3 2 3
D1.5*D4*50 4 3 4
D2*D4*50 5 4 5
D2.5*D4*50 6 5 6
D3*D4*50 8 6 8
D3*D3*50 8 6 8
D3.5*D4*50 9 7 9
D4*D4*50 10 8 10
D1*D6*50 3 2 3
D1.5*D6*50 4 3 4
D2*D6*50 5 4 5
D2.5*D6*50 6 5 6
D3*D6*50 8 6 8
D3.5*D6*50 9 7 9
D4*D6*50 10 8 10
D6*D6*50 13 10 13
D6*D6*50 15 12 15
D7*D8*60 17 14 17
D8*D8*60 20 16 20
D10*75 25 20 25
D12*75 30 24 30
D14*100 45 28 35
D16*100 45 32 40
D18*100 45 36 40
D20*100 45 40 40



Flute Length of Extended End Mills(mm)



D3*D4*75 12 6 12
D4*D4*75 16 8 14
D5*D6*75 18 10 15
D6*D6*75 24 12 20
D8*75 25 16 25
D3*D4*100 12 6 15
D4*D4*100 20 8 15
D5*D6*100 20 10 20
D6*D6*100 30 12 25
D8*D8*100 35 16 30
D10*100 40 20 30
D12*100 45 24 35
D6*D6*150 45 12 40
D8*D8*150 50 16 45
D10*150 55 20 50
D12*150 55 24 55
D14*150 60 28 60
D16*150 70 32 65
D18*150 70 36 70
D20*150 70 40 70
