Product Description

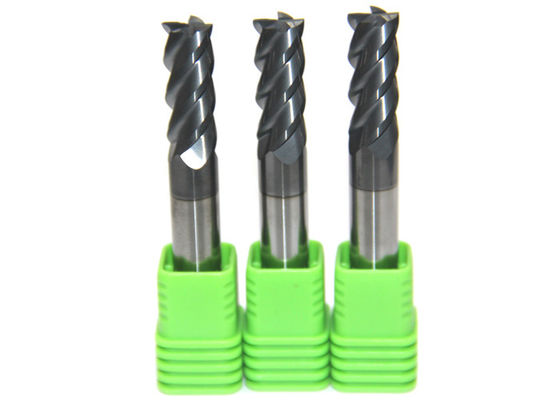

Solid Carbide End Mill Four Flutes Nano Coated 0.2 μM Grain Custom Size
Most of these coatings are referred to by their chemical composition, such as:
Aluminium titanium nitride (AlTiN) coated end mills, coated using the cathodic arc deposition technique
TiN (a basic yellowish coating that has fallen out of wide use)
TiCN (a popular bluish-grey coating)
TiAlN and AlTiN (an extremely popular dark purple coating)
TiAlCrN, AlTiCrN and AlCrTiN (PVD coating).
PCD veins. Though not a coating some end mills are manufactured with a 'vein' of polycrystalline diamond. The vein is formed in a high temperature-high pressure environment. The vein is formed in a blank and then the material is ground out along the vein to form the cutting edge. Although the tools can be very costly, they can last many times longer than other tooling.
Specifications
| Raw Material |
AF308/510 |
| WC |
88% |
| Co |
12% |
| TRS |
>4500N/mm2 |
| Hardness |
>94HRA |
| A.O.L |
50-150mm |
| Grain size |
0.2μm |
| Upto |
<HRC65 |
| Flutes No |
4F |
| Coating |
nACo/AlTiN |
| Suitable for |
Steel,stainless steel,nickel alloy,Titanuim alloy,cast iron,plastic and other materials |
Coating:
| Item |
AlTiN |
nACo |
| Hardness(HV) |
3200 |
42(GPA) |
| Thickness(UM) |
2.5-3 |
3 |
| Oxidation temp(°) |
900 |
1200 |
| Friction coeffient |
0.3 |
0.4 |
| Color |
Black |
Blue |
Standard Sizes
| Size |
Flute Length of End Mills(mm) |
| Flat end |
Ball Nose |
Round nose |
| D1*D4*50 |
3 |
2 |
3 |
| D1.5*D4*50 |
4 |
3 |
4 |
| D2*D4*50 |
5 |
4 |
5 |
| D2.5*D4*50 |
6 |
5 |
6 |
| D3*D4*50 |
8 |
6 |
8 |
| D3*D3*50 |
8 |
6 |
8 |
| D3.5*D4*50 |
9 |
7 |
9 |
| D4*D4*50 |
10 |
8 |
10 |
| D1*D6*50 |
3 |
2 |
3 |
| D1.5*D6*50 |
4 |
3 |
4 |
| D2*D6*50 |
5 |
4 |
5 |
| D2.5*D6*50 |
6 |
5 |
6 |
| D3*D6*50 |
8 |
6 |
8 |
| D3.5*D6*50 |
9 |
7 |
9 |
| D4*D6*50 |
10 |
8 |
10 |
| D6*D6*50 |
13 |
10 |
13 |
| D6*D6*50 |
15 |
12 |
15 |
| D7*D8*60 |
17 |
14 |
17 |
| D8*D8*60 |
20 |
16 |
20 |
| D10*75 |
25 |
20 |
25 |
| D12*75 |
30 |
24 |
30 |
| D14*100 |
45 |
28 |
35 |
| D16*100 |
45 |
32 |
40 |
| D18*100 |
45 |
36 |
40 |
| D20*100 |
45 |
40 |
40 |
| Flute Length of Extended End Mills(mm) |
| D3*D4*75 |
12 |
6 |
12 |
| D4*D4*75 |
16 |
8 |
14 |
| D5*D6*75 |
18 |
10 |
15 |
| D6*D6*75 |
24 |
12 |
20 |
| D8*75 |
25 |
16 |
25 |
| D3*D4*100 |
12 |
6 |
15 |
| D4*D4*100 |
20 |
8 |
15 |
| D5*D6*100 |
20 |
10 |
20 |
| D6*D6*100 |
30 |
12 |
25 |
| D8*D8*100 |
35 |
16 |
30 |
| D10*100 |
40 |
20 |
30 |
| D12*100 |
45 |
24 |
35 |
| D6*D6*150 |
45 |
12 |
40 |
| D8*D8*150 |
50 |
16 |
45 |
| D10*150 |
55 |
20 |
50 |
| D12*150 |
55 |
24 |
55 |
| D14*150 |
60 |
28 |
60 |
| D16*150 |
70 |
32 |
65 |
| D18*150 |
70 |
36 |
70 |
| D20*150 |
70 |
40 |
70 |
FAQ
Q: When can I get the price?
A:We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us in your email so that we will regard your inquiry priority.
Q: How can I get a sample to check your quality?
A:After price confirmation, you can require for samples to check our quality.
Q: What about the transportation and delivery date?
A:Normally we send the goods via air express or as your request.
Q: Are you trading company or manufacturer?
A: We are professional manufacturer, have more than 20 years experience in this field.
Q: How about your stock?
A:We have large quantity products in stock, regular types and sizes are all in stock.
Q: Is free shipping possible?
A: We don't offer free shipping service, but we will give you some discount if you buy large quantity products.
Q: Can you produce Special carbide Tools ?
A: Yes We can.
