Ball Nose End Mill Tungsten Carbide High Speed High Hardness

Product Details:
Place of Origin: MADE IN CHINA
Brand Name: KTC
Certification: CCC
Model Number: HG680
Payment & Shipping Terms:
Minimum Order Quantity: 10 pcs
Price: Negotiation
Packaging Details: 1PC/ PVC Packing, 10pcs PVC Packing/Pack...
Delivery Time: 1-35days
Payment Terms: T/T, L/C,Paypal...
Supply Ability: 10000pcs/week

Detail Information

Product Name: Ball Nose End Mill Tungsten Carbide High Speed High Hardness Precision: High Precision
Flexural Strength: 4600mpa A.O.L: 50mm-150mm
Grain Size: 0.2 μm Material: Carbide,Tungsten Cobalt Alloy,Carbide/Tungsten
Machine Type: Milling Maching,cnc Machine End Mill,Cutting Maching, Controlling Mode: CNC Tooling System,CNC,CNC System,CNC Cutting Mills
High Light:

ball nose tool

,

hard milling end mills

Product Description

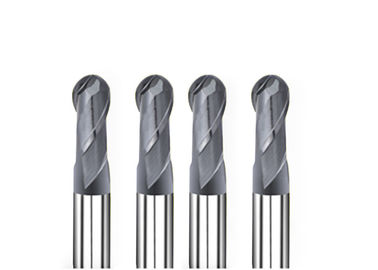

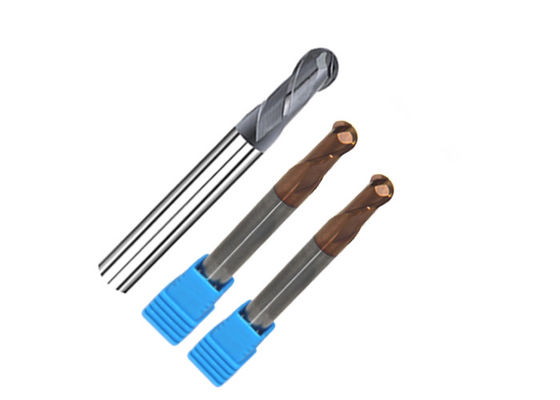

Ball Nose End Mill Tungsten Carbide High Speed High Hardness




Specifications


HG680 high speed and high hardness milling cutter series is made of high-quality European grain tungsten steel material, with bending strength of 4600mpa and grain size of 0.2 μm, which is coated with imported Balzers high-performance composite coating. HG680 milling cutters are with special groove design, are especially suitable for high hard material processing. The service life of cutting tools can meet the requirements of great brands. With high precision quality control, and full inspection, all HG680 series end mills are delivered with 100% qualification rate.


Raw Material K44
WC 88%
Co 12%
TRS >4600N/mm2
Hardness >94HRA
A.O.L 50mm-150mm
Grain size 0.2μm
Upto <HRC65
Flutes No 4F
Coating Balzers
Suitable for Steel,stainless steel,nickel alloy,Titanuim alloy,cast iron,plastic and other materials


Standard Sizes


Size Flute Length of End Mills(mm)
Flat end Ball Nose
D1*D4*50 3 2
D1.5*D4*50 4 3
D2*D4*50 5 4
D2.5*D4*50 6 5
D3*D4*50 8 6
D3*D3*50 8 6
D3.5*D4*50 9 7
D4*D4*50 10 8
D1*D6*50 3 2
D1.5*D6*50 4 3
D2*D6*50 5 4
D2.5*D6*50 6 5
D3*D6*50 8 6
D3.5*D6*50 9 7
D4*D6*50 10 8
D6*D6*50 13 10
D6*D6*50 15 12
D7*D8*60 17 14
D8*D8*60 20 16
D10*75 25 20
D12*75 30 24
D14*100 45 28
D16*100 45 32
D18*100 45 36
D20*100 45 40
Flute Length of Extended End Mills(mm)
D3*D4*75 12 6
D4*D4*75 16 8
D5*D6*75 18 10
D6*D6*75 25 12
D8*75 30 16
D3*D4*100 15 6
D4*D4*100 20 8
D5*D6*100 30 10
D6*D6*100 30 12
D8*D8*100 35 16
D10*100 40 20
D12*100 45 24
D6*D6*150 40 12
D8*D8*150 50 16
D10*150 55 20
D12*150 55 24
D14*150 60 28
D16*150 70 32
D18*150 70 70
D20*150 70 70



Flat end mill vs. ball end mill



End mills come in a variety of shapes. The most common are flat end mills and ball end mills. Flat end mills will cut flat areas with no scallops. However, they leave a terrace-like scallop on non-flat surfaces. Ball end mills will leave smaller scallops for the same stepover value on sloped surfaces, but they will also leave scallops on flat areas.

Models can be tooled with a combination of flat and ball end mills. If only one tool will be used for all surfaces a ball end geometry will give a more consistent overall feel and smooth result.

Choosing flat end mill vs. a ball end mill will determine the characteristics of the tooling marks (or lack thereof) on your model. Most jobs will benefit from strategic use of multiple size and shape tools for milling different features. End Mills are often used for roughing and 2D cutting and V-Bit and Ball Nose cutters are often used for finishing operations.

Ball Nose End Mill Tungsten Carbide High Speed High Hardness 0
