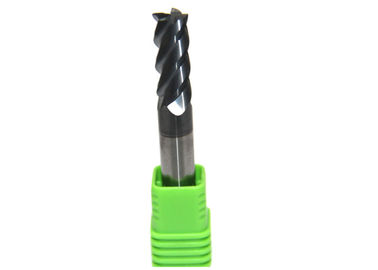

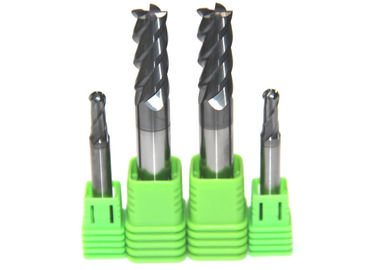

Co 12% Tungsten Carbide Corner Radius Milling Cutters Nano Coated 4 Flutes

Product Details:
Place of Origin: MADE IN CHINA
Brand Name: KTC
Certification: CCC
Model Number: E650
Payment & Shipping Terms:
Minimum Order Quantity: 10 pcs
Price: Negotiation
Packaging Details: 1PC/ PVC Packing, 10pcs PVC Packing/Pack...
Delivery Time: 1-35days
Payment Terms: T/T, L/C,Paypal...
Supply Ability: 10000pcs/week

Detail Information

Product Name: Co 12% Tungsten Carbide Corner Radius Milling Cutters Nano Coated 4 Flutes Flutes No: 4 Flutes
Grain Size: 0.2 μm A.O.L: 50-150mm
Flexural Strength: 4500mpa Coating: NACo/AlTiN
Co: 12% Suitable For: Steel,stainless Steel,nickel Alloy,Titanuim Alloy,cast Iron,plastic And Other Materials
High Light:

corner rounding milling cutters

,

corner radius milling cutters

,

4 flutes corner radius milling cutters

Product Description

Co 12% Tungsten Carbide Corner Radius Milling Cutters Nano Coated 4 Flutes



Chamfer and Radius

A chamfer will create a cutting action that assists in breaking chips in most materials. This contributes to smother cuts, allowing for heavier feed rates and more efficient production.

A radius blended into each flute when the tool is manufactured is most recommended because the cutting action is smooth. This ensures constant cutting and chip removal. Life of the tool is increased because there is no sharp corner to absorb excessive heat.



Specifications



E650 Blue / Black nano milling cutter series (< HRC65 °) adopt imported high-quality fine grain tungsten steel material with bending strength of 4500mpa and grain size of 0.2μm, with high-performance composite coating imported from Switzerland. E650 milling cutters is designed with special angle, especially suitable for heat treatment die steel, high-speed, high hardness material processing. With high precision quality control, and full inspection, all E650 series end mills are delivered with 100% qualification rate.



Raw Material AF308/510
WC 88%
Co 12%
TRS >4500N/mm2
Hardness >94HRA
A.O.L 50-150mm
Grain size 0.2μm
Upto <HRC65
Flutes No 4F
Coating nACo/AlTiN
Suitable for Steel,stainless steel,nickel alloy,Titanuim alloy,cast iron,plastic and other materials



Coating:

Item AlTiN nACo
Hardness(HV) 3200 42(GPA)
Thickness(μm) 2.5-3 3
Oxidation temp(°) 900 1200
Friction coeffient 0.3 0.4
Color Black Blue



Standard Sizes

Size Flute Length of End Mills(mm)
Flat end Ball Nose Round nose
D1*D4*50 3 2 3
D1.5*D4*50 4 3 4
D2*D4*50 5 4 5
D2.5*D4*50 6 5 6
D3*D4*50 8 6 8
D3*D3*50 8 6 8
D3.5*D4*50 9 7 9
D4*D4*50 10 8 10
D1*D6*50 3 2 3
D1.5*D6*50 4 3 4
D2*D6*50 5 4 5
D2.5*D6*50 6 5 6
D3*D6*50 8 6 8
D3.5*D6*50 9 7 9
D4*D6*50 10 8 10
D6*D6*50 13 10 13
D6*D6*50 15 12 15
D7*D8*60 17 14 17
D8*D8*60 20 16 20
D10*75 25 20 25
D12*75 30 24 30
D14*100 45 28 35
D16*100 45 32 40
D18*100 45 36 40
D20*100 45 40 40
Flute Length of Extended End Mills(mm)
D3*D4*75 12 6 12
D4*D4*75 16 8 14
D5*D6*75 18 10 15
D6*D6*75 24 12 20
D8*75 25 16 25
D3*D4*100 12 6 15
D4*D4*100 20 8 15
D5*D6*100 20 10 20
D6*D6*100 30 12 25
D8*D8*100 35 16 30
D10*100 40 20 30
D12*100 45 24 35
D6*D6*150 45 12 40
D8*D8*150 50 16 45
D10*150 55 20 50
D12*150 55 24 55
D14*150 60 28 60
D16*150 70 32 65
D18*150 70 36 70
D20*150 70 40 70



Why choose us?



1. Professional research team and sales team.



2. We have our own factory.



3. All products are 100% tested working before sending to you .



4. Quick delivery.
