Violet Color Carbide End Mill Cutter / Tungsten Carbide Milling Cutters
Contact Person : KING
Phone Number : 86-18115005888
WhatsApp : +8618115005888
| Minimum Order Quantity : | 1PC | Price : | Negotiation |
|---|---|---|---|
| Packaging Details : | 1PC/ PVC Packing, 10pcs PVC Packing/Pack... | Delivery Time : | 1-35days |
| Payment Terms : | T/T, L/C,Paypal... | Supply Ability : | 10000pcs/week |
| Place of Origin: | MADE IN CHINA | Brand Name: | KTC |
|---|---|---|---|
| Certification: | CCC | Model Number: | E650 |
|
Detail Information |
|||
| Product Name: | End Mills | Flutes No: | 4 Flutes |
|---|---|---|---|
| Grain Size: | 0.2 μm | A.O.L: | 50-150mm |
| Flexural Strength: | 4500mpa | Coating: | NACo/AlTiN |
| Co: | 12% | Suitable For: | Steel,stainless Steel,nickel Alloy,Titanuim Alloy,cast Iron,plastic And Other Materials |
| High Light: | solid carbide end mill,12mm carbide end mill |
||
Product Description

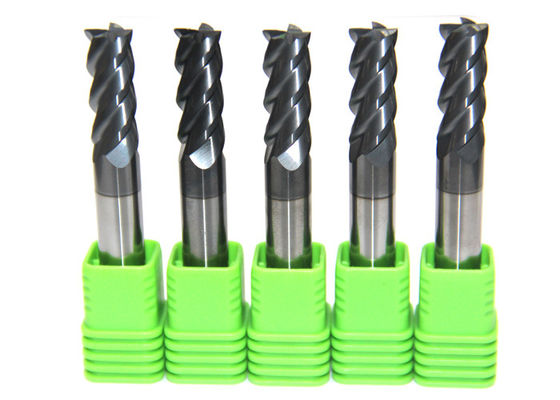

Nano Coating Carbide End Mill Cutter For Nickel Titanuim Alloy Cast Iron
Specifications
E650 Blue / Black nano milling cutter series (< HRC65 °) adopt imported high-quality fine grain tungsten steel material with bending strength of 4500mpa and grain size of 0.2μm, with high-performance composite coating imported from Switzerland. E650 milling cutters is designed with special angle, especially suitable for heat treatment die steel, high-speed, high hardness material processing. With high precision quality control, and full inspection, all E650 series end mills are delivered with 100% qualification rate.
| Raw Material | AF308/510 |
| WC | 88% |
| Co | 12% |
| TRS | >4500N/mm2 |
| Hardness | >94HRA |
| A.O.L | 50-150mm |
| Grain size | 0.2μm |
| Upto | <HRC65 |
| Flutes No | 4F |
| Coating | nACo/AlTiN |
| Suitable for | Steel,stainless steel,nickel alloy,Titanuim alloy,cast iron,plastic and other materials |
Coating:
| Item | AlTiN | nACo |
| Hardness(HV) | 3200 | 42(GPA) |
| Thickness(μm) | 2.5-3 | 3 |
| Oxidation temp(°) | 900 | 1200 |
| Friction coeffient | 0.3 | 0.4 |
| Color | Black | Blue |
Standard Sizes
| Size | Flute Length of End Mills(mm) | ||
| Flat end | Ball Nose | Round nose | |
| D1*D4*50 | 3 | 2 | 3 |
| D1.5*D4*50 | 4 | 3 | 4 |
| D2*D4*50 | 5 | 4 | 5 |
| D2.5*D4*50 | 6 | 5 | 6 |
| D3*D4*50 | 8 | 6 | 8 |
| D3*D3*50 | 8 | 6 | 8 |
| D3.5*D4*50 | 9 | 7 | 9 |
| D4*D4*50 | 10 | 8 | 10 |
| D1*D6*50 | 3 | 2 | 3 |
| D1.5*D6*50 | 4 | 3 | 4 |
| D2*D6*50 | 5 | 4 | 5 |
| D2.5*D6*50 | 6 | 5 | 6 |
| D3*D6*50 | 8 | 6 | 8 |
| D3.5*D6*50 | 9 | 7 | 9 |
| D4*D6*50 | 10 | 8 | 10 |
| D6*D6*50 | 13 | 10 | 13 |
| D6*D6*50 | 15 | 12 | 15 |
| D7*D8*60 | 17 | 14 | 17 |
| D8*D8*60 | 20 | 16 | 20 |
| D10*75 | 25 | 20 | 25 |
| D12*75 | 30 | 24 | 30 |
| D14*100 | 45 | 28 | 35 |
| D16*100 | 45 | 32 | 40 |
| D18*100 | 45 | 36 | 40 |
| D20*100 | 45 | 40 | 40 |
| Flute Length of Extended End Mills(mm) | |||
| D3*D4*75 | 12 | 6 | 12 |
| D4*D4*75 | 16 | 8 | 14 |
| D5*D6*75 | 18 | 10 | 15 |
| D6*D6*75 | 24 | 12 | 20 |
| D8*75 | 25 | 16 | 25 |
| D3*D4*100 | 12 | 6 | 15 |
| D4*D4*100 | 20 | 8 | 15 |
| D5*D6*100 | 20 | 10 | 20 |
| D6*D6*100 | 30 | 12 | 25 |
| D8*D8*100 | 35 | 16 | 30 |
| D10*100 | 40 | 20 | 30 |
| D12*100 | 45 | 24 | 35 |
| D6*D6*150 | 45 | 12 | 40 |
| D8*D8*150 | 50 | 16 | 45 |
| D10*150 | 55 | 20 | 50 |
| D12*150 | 55 | 24 | 55 |
| D14*150 | 60 | 28 | 60 |
| D16*150 | 70 | 32 | 65 |
| D18*150 | 70 | 36 | 70 |
| D20*150 | 70 | 40 | 70 |
FAQ
1. Where are your factory located? If I visit your factory, how can I go there?
Our factory located in Changzhou city, Jiangsu province.
2. What are your main products?
Our main products are carbide cutting tools, including end mill, face mill, drill bits etc.
3. What raw material you use?
We have rods with 3-4 types hardness, hrc45, hrc55, hrc60,hrc65.. Your work piece hardness decides what rods are suitable for.
5. How to ensure the quality?
We have precision detection machine, quality inspectors check cutters one by one.
6. How to deal with the cutters under verified?
These under verified cutters are all scraped.
7. I only have the drawings of work pieces? can you design cutters for me?
Yes, of course, show me work piece drawing, I will show you cutters’ drawing.
9. How long can you deliver goods?
If we have stock, goods will be shipped by next day, if not in stock, 7-35 days.
10. Can I choose the color of plastic pipe?
Yes, we have such as black, blue, red, yellow etc. color.
11. Can you make stickers with our logo and laser on cutters’ shanks?
Yes. We can print stickers with your logo and laser on shanks.
