Coated End Mill Bits For Drill Press Stainless Steel Titanium Processing
Contact Person : KING
Phone Number : 86-18115005888
WhatsApp : +8618115005888
| Minimum Order Quantity : | 1PC | Price : | Negotiation |
|---|---|---|---|
| Packaging Details : | 1PC/ PVC Packing, 10pcs PVC Packing/Pack... | Delivery Time : | 1-35days |
| Payment Terms : | T/T, L/C,Paypal... | Supply Ability : | 10000pcs/week |
| Place of Origin: | MADE IN CHINA | Brand Name: | KTC |
|---|---|---|---|
| Certification: | CCC | Model Number: | Coated 1*P |
|
Detail Information |
|||
| Product Name: | Coated Thread Mill Cutter / Thread End Mill CNC Processing Mills | Raw Material: | GU25UF |
|---|---|---|---|
| Coating: | AlTiN Or TiSiN | Color: | Black Or Copper |
| Hardness: | >92HRA | Cutting Diameter: | Based On The Flute Length |
| High Light: | thread end mill,thread cutting end mill |
||
Product Description

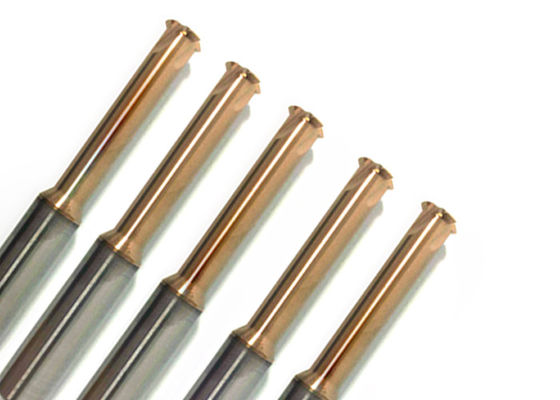

Coated Thread Mill Cutter / Thread End Mill CNC Processing Mills
Thread mills are tools designed to cut threads by milling. Thread mills are used on numerically controlled machining centers (NC) that have simultaneous, triaxle control and helical interpolation functions. In comparison to general tapping, thread milling is more stable with less cutting condition limitations in terms of chip management and coolant lubricity.
Specifications
| Raw Material | GU25UF |
| WC | 92% |
| Co | 8% |
| TRS | >4300N/mm2 |
| Hardness | >92HRA |
| A.O.L | 50mm-90mm |
| Grain size | 0.4 μm |
| Upto | HRC60 |
| Flutes No | 3/4/5/6F |
| Coating | AlTiN or TiSiN |
| Suitable for | copper, aluminum, medium and high carbon steel, die steel, pre-hardened steel and other material hole processing |
Coating:
| Item | AlTiN | TiSiN |
| Hardness(HV) | 3200 | 3600 |
| Thickness(UM) | 2.5-3 | 3 |
| Oxidation temp(°) | 900 | 1000 |
| Friction coeffient | 0.3 | 0.45 |
| Color | Black | Copper |
Standard Sizes
| 60° Micro 1*P | ||||||||
| Pitch (mm) | M Coarse Thread | M Fine Thread | Shank Dia. | Edge Dia. | No. of Flutes | Flute Length | Overall Length | |
| 0.25 | M1.0*0.25 | M1.4*0.25 | 4 | 0.7 | 3 | 3.1 | 50 | |
| 0.25 | M1.2*0.25 | M1.4*0.25 | 4 | 0.9 | 3 | 38 | 50 | |
| 0.3 | M1.4*0.3 | 4 | 1.05 | 3 | 4.4 | 50 | ||
| 0.35 | M1.6*0.35 | 4 | 1.2 | 3 | 5 | 50 | ||
| 0.35 | M1.8*0.35 | M2.0*0.35 | 4 | 1.4 | 3 | 5.6 | 50 | |
| 0.4 | M2.0*0.4 | 4 | 1.5 | 3 | 6.2 | 50 | ||
| 0.45 | M2.5*0.45 | 4 | 1.95 | 3 | 7.7 | 50 | ||
| 0.5 | M3*0.5 | 4 | 24 | 3 | 9 | 50 | ||
| 0.6 | M3.5*0.6 | 4 | 2.75 | 3 | 10 | 50 | ||
| 0.7 | M4*0.7 | 4 | 3.15 | 3 | 12 | 50 | ||
| 0.8 | M5*0.8 | 4 | 4 | 3 | 15 | 50 | ||
| 1.0 | M6*1.0 | 6 | 4.8 | 3 | 19 | 60 | ||
| 1.25 | M8*1.25 | 6 | 6 | 3 | 26 | 60 | ||
| 1.5 | M10*1.5 | 6 | 8 | 3 | 32 | 60 | ||
| 1.5 | M12*1.5 | 10 | 9.4 | 4 | 38 | 75 | ||
| 1.75 | M12*1.75 | 10 | 9.4 | 4 | 38 | 75 | ||
| 2.0 | M14*2.0 | 12 | 10.2 | 4 | 44 | 75 | ||
| 2.0 | M16*2.0 | 14 | 13 | 4 | 48 | 80 | ||
| 2.5 | M18*2.5 | 16 | 14.5 | 4 | 60 | 90 | ||
| 2.5 | M20*2.5 | 16 | 16 | 5 | 60 | 90 | ||
| 60° UN/ M Series Micro 1*P | |||||||||
| Pitch | UN/UNS /UNF /UNEF | M Coarse Thread | M Fine Thread | Shank Dia. | Edge Dia. | No. of Flutes | Flute Length | Overall Length | |
| mm | TPI | ||||||||
| 0.5-0.8 | 32-56 | No.10-56UNS,No.10-48UNS,No.10-40UNS,No.10-36UNS,No.10-32UNF | M5*0.8 | M5*0.5,M5*0.75 | 4 | 3.9 | 4 | 16 | 50 |
| 0.5-1.0 | 24-56 | No.12-56UNS,No.10-48UNS,1/4-40UNS,1/4-36UNS,1/4-32UNEF,1/4-28UNF | M6*1.0 | M6*0.5,M6*0.75 | 6 | 4.85 | 5 | 20 | 60 |
| 0.5-1.25 | 20-48 | 5/16-48UNS,5/16-40UNS,5/16-36UNS,5/16-32UNEF,5/16-28UN,5/16-27UNS,5/16-24UNS,5/16-20UN | M8*1.25 | M7*0.5,M7*0.75,M7.5*1.0 | 6 | 5.9 | 5 | 25 | 60 |
| 0.5-1.0 | 24-56 | 7/16-24UNS,1/2-16UNS,1/2-18UNS,1/2-16UNS,1/2-14UNS | M10*0.5,M11*0.75,M11*1.0 | 10 | 9.9 | 6 | 35 | 75 | |
| 1.0-1.5 | 16-24 | 3/8-24UNF,3/8-20UNS,7/16-18UNS,7/16-24UN | M10*1.5 | M5*0.5,M5*0.75 | 8 | 7.9 | 6 | 32 | 60 |
| 1.0-1.75 | 14-24 | 1/2-24UNS,1/2-20UNS,1/2-18UNS,1/2-16UNS,1/2-14UNS | M12*1.75 | M5*0.5,M5*0.75 | 10 | 9.9 | 6 | 38 | 75 |
| 1.0-1.75 | 14-24 | M5*0.5,M5*0.75 | M5*0.5,M5*0.75 | 12 | 11.9 | 6 | 45 | 75 | |
