High Speed Ball Mill Cutter For Steel Good Heat Resistance

Minimum Order Quantity : 1PC Price : Negotiation
Packaging Details : 1PC/ PVC Packing, 10pcs PVC Packing/Pack... Delivery Time : 1-35days
Payment Terms : T/T, L/C,Paypal... Supply Ability : 10000pcs/week
Place of Origin: MADE IN CHINA Brand Name: KTC
Certification: CCC Model Number: HG680

Detail Information

Product Name: High Speed Ball Mill Cutter For Steel Good Heat Resistance Precision: High Precision
Flexural Strength: 4600mpa A.O.L: 50mm-150mm
Grain Size: 0.2 μm Type: End Mill,Face Mill
Suitable For: Cast Iron,Carbon Steel,Copper,Stainless Steel,Cooper.Cast Iron.Carbon Steel.Mould Steel Usage: General High Speed Cutting,Metal Machining
High Light:

ball nose tool

,

hard milling end mills

Product Description

High Speed Ball Mill Cutter For Steel Good Heat Resistance





The ball nose end mill has four flutes for machining on hardened and high-alloy steel, steel casting, chill casting, malleable cast iron, chromium-nickel steel, brass, copper, aluminum with a high percentage of silicon, and abrasive plastic. Four flutes produce a better finish than fewer flutes. The tool’s ball nose creates contoured surfaces where sharp corners are not required. It balances lower angles’ strong cutting edge for difficult-to-machine materials with higher angles’ increased cutting action. The center-cutting design has cutting teeth at the end of the tool, so it can be fed into the workpiece like a drill bit.

Specifications


HG680 high speed and high hardness milling cutter series is made of high-quality European grain tungsten steel material, with bending strength of 4600mpa and grain size of 0.2 μm, which is coated with imported Balzers high-performance composite coating. HG680 milling cutters are with special groove design, are especially suitable for high hard material processing. The service life of cutting tools can meet the requirements of great brands. With high precision quality control, and full inspection, all HG680 series end mills are delivered with 100% qualification rate.


Raw Material K44
WC 88%
Co 12%
TRS >4600N/mm2
Hardness >94HRA
A.O.L 50mm-150mm
Grain size 0.2μm
Upto <HRC65
Flutes No 4F
Coating Balzers
Suitable for Steel,stainless steel,nickel alloy,Titanuim alloy,cast iron,plastic and other materials

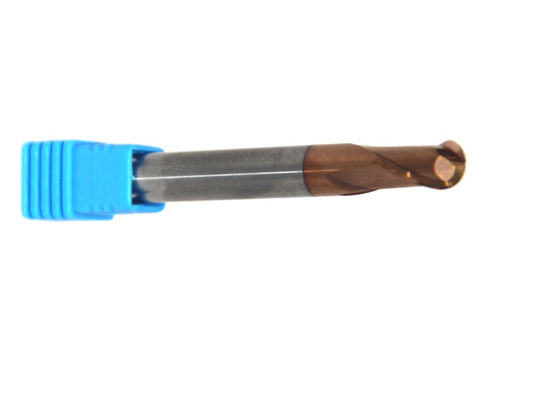

High Speed Ball Mill Cutter For Steel Good Heat Resistance 0
Standard Sizes


Size Flute Length of End Mills(mm)
Flat end Ball Nose
D1*D4*50 3 2
D1.5*D4*50 4 3
D2*D4*50 5 4
D2.5*D4*50 6 5
D3*D4*50 8 6
D3*D3*50 8 6
D3.5*D4*50 9 7
D4*D4*50 10 8
D1*D6*50 3 2
D1.5*D6*50 4 3
D2*D6*50 5 4
D2.5*D6*50 6 5
D3*D6*50 8 6
D3.5*D6*50 9 7
D4*D6*50 10 8
D6*D6*50 13 10
D6*D6*50 15 12
D7*D8*60 17 14
D8*D8*60 20 16
D10*75 25 20
D12*75 30 24
D14*100 45 28
D16*100 45 32
D18*100 45 36
D20*100 45 40
Flute Length of Extended End Mills(mm)
D3*D4*75 12 6
D4*D4*75 16 8
D5*D6*75 18 10
D6*D6*75 25 12
D8*75 30 16
D3*D4*100 15 6
D4*D4*100 20 8
D5*D6*100 30 10
D6*D6*100 30 12
D8*D8*100 35 16
D10*100 40 20
D12*100 45 24
D6*D6*150 40 12
D8*D8*150 50 16
D10*150 55 20
D12*150 55 24
D14*150 60 28
D16*150 70 32
D18*150 70 70
D20*150 70 70
