Product Description

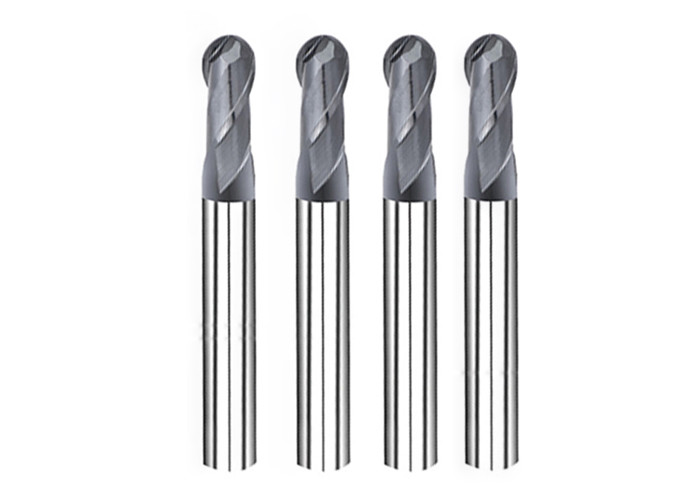

High Performance Ball Nose Bit Tungsten Carbide High Hard Material Processing
Advantage
- Suitable for machining on hardened and high-alloy steel, steel casting, chill casting, malleable cast iron, chromium-nickel steel, brass, copper, aluminum with a high percentage of silicon, and abrasive plastic
- Extra-long-length end mills have longer cutting edges and can make deeper cuts than long-length end mills
- Four flutes produce a better finish than fewer flutes
- Carbide can run at higher speeds than high-speed or cobalt steel, resisting wear and high cutting temperatures
- Ball nose end mills (also called ball end) create contoured surfaces
Specifications
HG680 high speed and high hardness milling cutter series is made of high-quality European grain tungsten steel material, with bending strength of 4600mpa and grain size of 0.2 μm, which is coated with imported Balzers high-performance composite coating. HG680 milling cutters are with special groove design, are especially suitable for high hard material processing. The service life of cutting tools can meet the requirements of great brands. With high precision quality control, and full inspection, all HG680 series end mills are delivered with 100% qualification rate.
| Raw Material |
K44 |
| WC |
88% |
| Co |
12% |
| TRS |
>4600N/mm2 |
| Hardness |
>94HRA |
| A.O.L |
50mm-150mm |
| Grain size |
0.2μm |
| Upto |
<HRC65 |
| Flutes No |
4F |
| Coating |
Balzers |
| Suitable for |
Steel,stainless steel,nickel alloy,Titanuim alloy,cast iron,plastic and other materials |
Standard Sizes
| Size |
Flute Length of End Mills(mm) |
| Flat end |
Ball Nose |
| D1*D4*50 |
3 |
2 |
| D1.5*D4*50 |
4 |
3 |
| D2*D4*50 |
5 |
4 |
| D2.5*D4*50 |
6 |
5 |
| D3*D4*50 |
8 |
6 |
| D3*D3*50 |
8 |
6 |
| D3.5*D4*50 |
9 |
7 |
| D4*D4*50 |
10 |
8 |
| D1*D6*50 |
3 |
2 |
| D1.5*D6*50 |
4 |
3 |
| D2*D6*50 |
5 |
4 |
| D2.5*D6*50 |
6 |
5 |
| D3*D6*50 |
8 |
6 |
| D3.5*D6*50 |
9 |
7 |
| D4*D6*50 |
10 |
8 |
| D6*D6*50 |
13 |
10 |
| D6*D6*50 |
15 |
12 |
| D7*D8*60 |
17 |
14 |
| D8*D8*60 |
20 |
16 |
| D10*75 |
25 |
20 |
| D12*75 |
30 |
24 |
| D14*100 |
45 |
28 |
| D16*100 |
45 |
32 |
| D18*100 |
45 |
36 |
| D20*100 |
45 |
40 |
| Flute Length of Extended End Mills(mm) |
| D3*D4*75 |
12 |
6 |
| D4*D4*75 |
16 |
8 |
| D5*D6*75 |
18 |
10 |
| D6*D6*75 |
25 |
12 |
| D8*75 |
30 |
16 |
| D3*D4*100 |
15 |
6 |
| D4*D4*100 |
20 |
8 |
| D5*D6*100 |
30 |
10 |
| D6*D6*100 |
30 |
12 |
| D8*D8*100 |
35 |
16 |
| D10*100 |
40 |
20 |
| D12*100 |
45 |
24 |
| D6*D6*150 |
40 |
12 |
| D8*D8*150 |
50 |
16 |
| D10*150 |
55 |
20 |
| D12*150 |
55 |
24 |
| D14*150 |
60 |
28 |
| D16*150 |
70 |
32 |
| D18*150 |
70 |
70 |
| D20*150 |
70 |
70 |
FAQ
1. Where are your factory located? If I visit your factory, how can I go there?
Our factory located in Changzhou city, Jiangsu province.
2. What are your main products?
Our main products are carbide cutting tools, including end mill, face mill, drill bits etc.
3. What raw material you use?
We have rods with 3-4 types hardness, hrc45, hrc55, hrc60,hrc65.. Your work piece hardness decides what rods are suitable for.
5. How to ensure the quality?
We have precision detection machine, quality inspectors check cutters one by one.
6. How to deal with the cutters under verified?
These under verified cutters are all scraped.
7. I only have the drawings of work pieces? can you design cutters for me?
Yes, of course, show me work piece drawing, I will show you cutters’ drawing.
9. How long can you deliver goods?
If we have stock, goods will be shipped by next day, if not in stock, 7-35 days.
10. Can I choose the color of plastic pipe?
Yes, we have such as black, blue, red, yellow etc. color.
11. Can you make stickers with our logo and laser on cutters’ shanks?
Yes. We can print stickers with your logo and laser on shanks.
