4 Flutes Square End Mill / Variable Spiral Solid Carbide End Mill Cutter

Minimum Order Quantity : 10 pcs Price : Negotiation

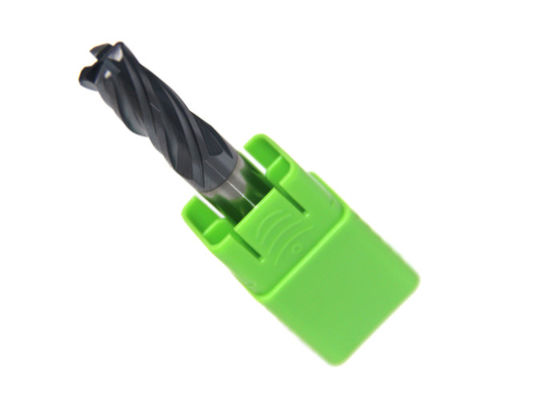

Packaging Details : 1PC/ PVC Packing, 10pcs PVC Packing/Pack... Delivery Time : 1-35days
Payment Terms : T/T, L/C,Paypal... Supply Ability : 10000pcs/week
Place of Origin: MADE IN CHINA Brand Name: KTC
Certification: CCC Model Number: E600

Detail Information

Product Name: End Mills Raw Material: GU25UF
Coating: AlTiN Or TiSiN Color: Black/Copper
Hardness: >92HRA Cutting Diameter: As Requested
Precision: High Precision Co: 12%
Grain Size: 0.4 μm Flutes No.: 4 Flutes
High Light:

tungsten carbide milling cutters

,

high performance end mills

,

4 Flutes Solid Carbide End Mill

Product Description

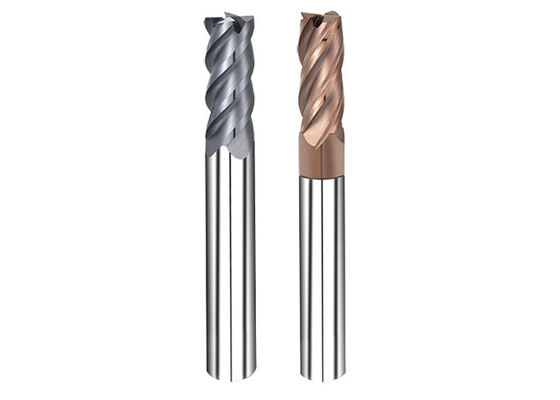

4 Flutes Square End Mill / Variable Spiral Solid Carbide End Mill Cutter



KTC Tungsten Carbide High Performance End Mills



Feature

Regular flute geometry as shown is most commonly used for roughing and finishing of side milling, slotting and shoulder milling.

A tapered flute geometry is used for special applications such as mould drafts and for applying taper angles after conventional straight edged milling.

Roughing type geometry has a wave like edge form and breaks the material into small chips. Additionally the cutting resistance is low enabling high feed rates when roughing. The inside face of the flute is suitable for regrinding.

Special form geometry is used for producing corner radii on components. There are an infinite number of different geometries that can be manufactured using such style of cutters.



Specifications



E600 high performance milling cutter series is made of domestic well-known high-quality fine grain tungsten steel material, with flexural strength of 4300mpa and grain size of 0.4 μm, and is coated with AlTiN or TiSiN imported from Switzerland. The cutter is designed with large helix angle, which can realize high-speed and efficient machining, especially suitable for medium and high carbon steel, die steel, pre-hardened steel and other materials processing. With high precision quality control, and full inspection, all E600 series end mills are delivered with 100% qualification rate.



Material GU25UF
WC 88%
Co 12%
TRS >4300N/mm2
Hardness >92HRA
A.O.L 50mm-150mm
Grain size 0.4μm
Upto HRC60
Flutes No 4 Flutes
Coating AlTiN or TiSiN
Suitable for Steel,stainless steel,nickel alloy,Titanuim alloy,cast iron,plastic and other materials





Coating:

Item AlTiN TiSiN
Hardness(HV): 3200 3600
Thickness(UM): 2.5-3 3
Oxidation Temp(°): 900 1000
frictional Coefficient: 0.3 0.45
Color: Black Copper



Standard Sizes

Size Flute Length of End Mills(mm)
Flat end Ball Nose Round nose
D1*D4*50 3 2 3
D1.5*D4*50 4 3 4
D2*D4*50 5 4 5
D2.5*D4*50 6 5 6
D3*D4*50 8 6 8
D3*D3*50 8 6 8
D3.5*D4*50 9 7 9
D4*D4*50 10 8 10
D1*D6*50 3 2 3
D1.5*D6*50 4 3 4
D2*D6*50 5 4 5
D2.5*D6*50 6 5 6
D3*D6*50 8 6 8
D3.5*D6*50 9 7 9
D4*D6*50 10 8 10
D6*D6*50 13 10 13
D6*D6*50 15 12 15
D7*D8*60 17 14 17
D8*D8*60 20 16 20
D10*75 25 20 25
D12*75 30 24 30
D14*100 45 28 35
D16*100 45 32 40
D18*100 45 36 40
D20*100 45 40 40



Flute Length of Extended End Mills(mm)



D3*D4*75 12 6 12
D4*D4*75 16 8 14
D5*D6*75 18 10 15
D6*D6*75 24 12 20
D8*75 25 16 25
D3*D4*100 12 6 15
D4*D4*100 20 8 15
D5*D6*100 20 10 20
D6*D6*100 30 12 25
D8*D8*100 35 16 30
D10*100 40 20 30
D12*100 45 24 35
D6*D6*150 45 12 40
D8*D8*150 50 16 45
D10*150 55 20 50
D12*150 55 24 55
D14*150 60 28 60
D16*150 70 32 65
D18*150 70 36 70
D20*150 70 40 70



FAQ





Q: When can I get the price?



A:We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us in your email so that we will regard your inquiry priority.







Q: How can I get a sample to check your quality?



A:After price confirmation, you can require for samples to check our quality.







Q: What about the transportation and delivery date?



A:Normally we send the goods via air express or as your request.







Q: Are you trading company or manufacturer?



A: We are professional manufacturer, have more than 20 years experience in this field.







Q: How about your stock?



A:We have large quantity products in stock, regular types and sizes are all in stock.



Q: Is free shipping possible?

A: We don't offer free shipping service, but we will give you some discount if you buy large quantity products.







Q: Can you produce Special carbide Tools ?

A: Yes We can.
