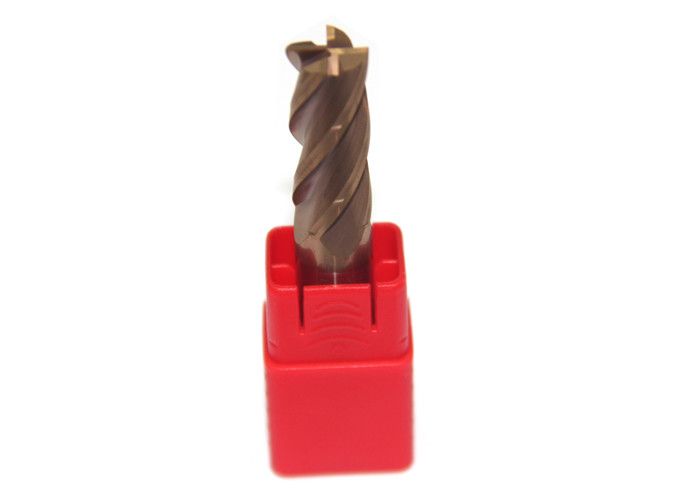

1 Inch 2 Inch Square End Mill / High Speed Steel Milling Cutters General Processing

Contact Now

1 Inch 2 Inch Square End Mill / High Speed Steel Milling Cutters General Processing

Name: 1 Inch 2 Inch Square End Mill / High Speed Steel Milling Cutters General Processing
Brand: KTC
SKU: E550
Rating: 4.5 (108 reviews)

Minimum Order Quantity :	10 pcs	Price :	Negotiation
Packaging Details :	1PC/ PVC Packing, 10pcs PVC Packing/Pack...	Delivery Time :	1-35days
Payment Terms :	T/T, L/C,Paypal...	Supply Ability :	10000pcs/week

Place of Origin:	MADE IN CHINA	Brand Name:	KTC
Certification:	CCC	Model Number:	E550

Detail Information
Product Name:	End Mills	Raw Material:	YL10.2 / K30
Coating:	AlTiN Or TiSiN	Color:	Black/Copper
Hardness:	>91.5HRA	Cutting Diameter:	Based On Flute Length
Highlight:	high performance end mills , square end mill cutter , 4 flute 2 inch square end mill

Product Description

1 Inch 2 Inch Square End Mill / High Speed Steel Milling Cutters General Processing

KTC Tungsten Carbide General Processing End Mills

Specifications

4 Flute Square End Mill precision cutting tools capable of increasing productivity and meeting some of the most challenging application requirements. cutting tools are produced using high quality, fine grain solid carbide with a reinforced shank diameter to maximize stability. The consistent edge preparation performed on even the smallest diameters is necessary to accurately produce modern micro workpiece geometries

E550 general processing milling cutter series adopt domestic high-quality fine grain tungsten steel material. Flexural strength: 3900mpa, grain size: 0.8μm, with coating (black / Bronze) by imported coating equipment. E550 milling cutters are with special angle design and strict quality control, which is especially suitable for ordinary medium and low carbon steel, alloy steel and other materials processing. With high precision quality control, and full inspection, all E550 series end mills are delivered with 100% qualification rate.

Raw Material	YL10.2 / K30
WC	90%
Co	10%
TRS	>3900N/mm2
Hardness	>91.5HRA
A.O.L	50mm-150mm
Grain size	0.8 μm
Upto	HRC55
Flutes No	4F
Coating	AlTiN or TiSiN
Suitable for	Steel,stainless steel,nickel alloy,Titanium alloy,cast iron, plastic and other materials

Coating:

Item	AlTiN	TiSiN
Hardness(HV):	3200	3600
Thickness(UM):	2.5-3	3
Oxidation Temp(°):	900	1000
frictional Coefficient:	0.3	0.45
Color:	Black	Copper

Standard Sizes

Size	Flute Length of End Mills(mm)
Size	Flat end	Ball Nose	Round nose
D1D450	3	2	3
D1.5D450	4	3	4
D2D450	5	4	5
D2.5D450	6	5	6
D3D450	8	6	8
D3D350	8	6	8
D3.5D450	9	7	9
D4D450	10	8	10
D1D650	3	2	3
D1.5D650	4	3	4
D2D650	5	4	5
D2.5D650	6	5	6
D3D650	8	6	8
D3.5D650	9	7	9
D4D650	10	8	10
D6D650	13	10	13
D6D650	15	12	15
D7D860	17	14	17
D8D860	20	16	20
D10*75	25	20	25
D12*75	30	24	30
D14*100	45	28	35
D16*100	45	32	40
D18*100	45	36	40
D20*100	45	40	40
Flute Length of Extended End Mills(mm)
D3D475	12	6	12
D4D475	16	8	14
D5D675	18	10	15
D6D675	24	12	20
D8*75	25	16	25
D3D4100	12	6	15
D4D4100	20	8	15
D5D6100	20	10	20
D6D6100	30	12	25
D8D8100	35	16	30
D10*100	40	20	30
D12*100	45	24	35
D6D6150	45	12	40
D8D8150	50	16	45
D10*150	55	20	50
D12*150	55	24	55
D14*150	60	28	60
D16*150	70	32	65
D18*150	70	36	70
D20*150	70	40	70
