Product Description

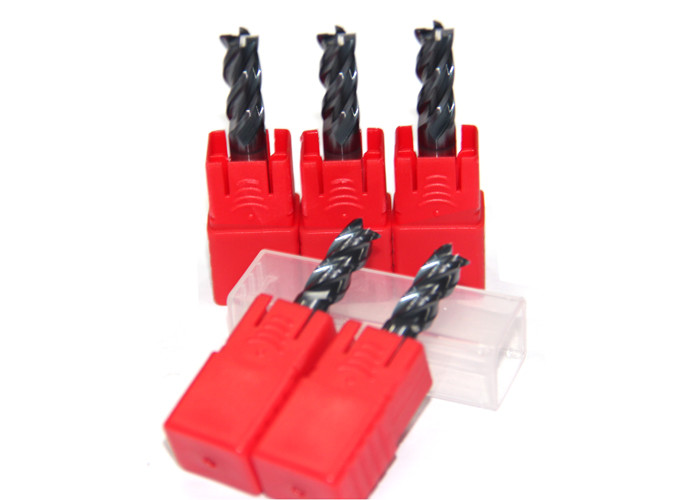

4 Flute Solid Carbide Milling Cutters General Processing Black Color
KTC Tungsten Carbide General Processing End Mills
Applications of square end mill
1. Suitable for Copper, Cast Iron, Carbon steel, Tool steel, Mould steel, Die steel, Stainless steel, Plastic, Arcylic, etc.
2. Applicated for Aerospace, transportation, Medical equipment, military manufacturing, mould development, apparatus and instrument, etc
Specifications
Flat (SQ) End Mills have a square end for milling square slots, pockets, grooving, side milling, face milling, and counter boring. All are center cutting, allowing plunge cuts into a surface. Great for milling into all types of material including, wood, plastic, metal. etc.
E550 general processing milling cutter series adopt domestic high-quality fine grain tungsten steel material. Flexural strength: 3900mpa, grain size: 0.8μm, with coating (black / Bronze) by imported coating equipment. E550 milling cutters are with special angle design and strict quality control, which is especially suitable for ordinary medium and low carbon steel, alloy steel and other materials processing. With high precision quality control, and full inspection, all E550 series end mills are delivered with 100% qualification rate.
| Raw Material |
YL10.2 / K30 |
| WC |
90% |
| Co |
10% |
| TRS |
>3900N/mm2 |
| Hardness |
>91.5HRA |
| A.O.L |
50mm-150mm |
| Grain size |
0.8 μm |
| Upto |
HRC55 |
| Flutes No |
4F |
| Coating |
AlTiN or TiSiN |
| Suitable for |
Steel,stainless steel,nickel alloy,Titanium alloy,cast iron, plastic and other materials |
Coating:
| Item |
AlTiN |
TiSiN |
| Hardness(HV): |
3200 |
3600 |
| Thickness(UM): |
2.5-3 |
3 |
| Oxidation Temp(°): |
900 |
1000 |
| frictional Coefficient: |
0.3 |
0.45 |
| Color: |
Black |
Copper |
Standard Sizes
| Size |
Flute Length of End Mills(mm) |
| Flat end |
Ball Nose |
Round nose |
| D1*D4*50 |
3 |
2 |
3 |
| D1.5*D4*50 |
4 |
3 |
4 |
| D2*D4*50 |
5 |
4 |
5 |
| D2.5*D4*50 |
6 |
5 |
6 |
| D3*D4*50 |
8 |
6 |
8 |
| D3*D3*50 |
8 |
6 |
8 |
| D3.5*D4*50 |
9 |
7 |
9 |
| D4*D4*50 |
10 |
8 |
10 |
| D1*D6*50 |
3 |
2 |
3 |
| D1.5*D6*50 |
4 |
3 |
4 |
| D2*D6*50 |
5 |
4 |
5 |
| D2.5*D6*50 |
6 |
5 |
6 |
| D3*D6*50 |
8 |
6 |
8 |
| D3.5*D6*50 |
9 |
7 |
9 |
| D4*D6*50 |
10 |
8 |
10 |
| D6*D6*50 |
13 |
10 |
13 |
| D6*D6*50 |
15 |
12 |
15 |
| D7*D8*60 |
17 |
14 |
17 |
| D8*D8*60 |
20 |
16 |
20 |
| D10*75 |
25 |
20 |
25 |
| D12*75 |
30 |
24 |
30 |
| D14*100 |
45 |
28 |
35 |
| D16*100 |
45 |
32 |
40 |
| D18*100 |
45 |
36 |
40 |
| D20*100 |
45 |
40 |
40 |
| Flute Length of Extended End Mills(mm) |
| D3*D4*75 |
12 |
6 |
12 |
| D4*D4*75 |
16 |
8 |
14 |
| D5*D6*75 |
18 |
10 |
15 |
| D6*D6*75 |
24 |
12 |
20 |
| D8*75 |
25 |
16 |
25 |
| D3*D4*100 |
12 |
6 |
15 |
| D4*D4*100 |
20 |
8 |
15 |
| D5*D6*100 |
20 |
10 |
20 |
| D6*D6*100 |
30 |
12 |
25 |
| D8*D8*100 |
35 |
16 |
30 |
| D10*100 |
40 |
20 |
30 |
| D12*100 |
45 |
24 |
35 |
| D6*D6*150 |
45 |
12 |
40 |
| D8*D8*150 |
50 |
16 |
45 |
| D10*150 |
55 |
20 |
50 |
| D12*150 |
55 |
24 |
55 |
| D14*150 |
60 |
28 |
60 |
| D16*150 |
70 |
32 |
65 |
| D18*150 |
70 |
36 |
70 |
| D20*150 |
70 |
40 |
70 |
