Home ProductsSquare End MillS600 KTC HRC65 Solid Tungsten Carbide End Mills for Steel Black Grey Color

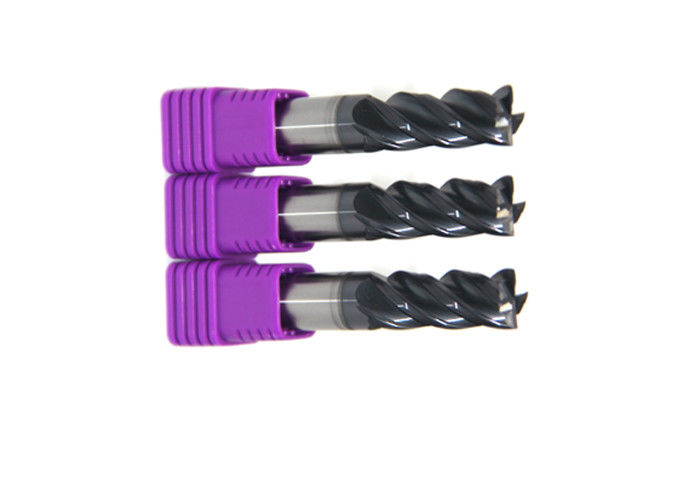

S600 KTC HRC65 Solid Tungsten Carbide End Mills for Steel Black Grey Color
S600 KTC HRC65 Solid Tungsten Carbide End Mills for Steel Black Grey Color S600 KTC HRC65 Solid Tungsten Carbide End Mills for Steel Black Grey Color
Contact Now

S600 KTC HRC65 Solid Tungsten Carbide End Mills for Steel Black Grey Color

Minimum Order Quantity : 1PC Price : Negotiation
Packaging Details : 1PC/ PVC Packing, 10pcs PVC Packing/Pack... Delivery Time : 1-35days
Payment Terms : T/T, L/C,Paypal... Supply Ability : 10000pcs/week
Place of Origin: MADE IN CHINA Brand Name: KTC
Certification: CCC Model Number: S600

Detail Information
Product Name: End Mills Raw Material: GU25UF
Coating: Special For Stainless Steel Color: Black Grey
Hardness: >92HRA Cutting Diameter: Based On The Flute Length
Upto: HRC65 Machine Type: CNC Milling Machine
High Light:

high performance end mills

,

square end mill cutter

,

HRC65 Tungsten Carbide End Mills

Product Description

S600 KTC HRC65 Solid Tungsten Carbide End Mills for Steel



KTC HRC65 Solid Tungsten Carbide End Mills for Steel



Description:



S600 series end mills for stainless steel / titanium alloy or other materials, adopt imported high-quality Fine grain tungsten steel material, with bending strength of 4300mpa and grain size of 0.4μm. It is coated with imported composite coating specially for stainless steel. It is suitable for large feed machining and improves Processing efficiency. With high precision quality control, and full inspection, all our S600 series are delivered with 100% qualification rate, suitable for various grades of stainless steel (308,316,316L) and high temperature alloy (nickel, titanium) and other intractable materials.



Raw Material GU25UF
WC 88%
Co 12%
TRS >4300N/mm2
Hardness >92HRA
Cutting diameter 1-20mm
A.O.L 50-150mm
Grain size 0.4μm
Helix angle 35°
Upto <HRC65
Flutes No 4F
Coating

Special for Stainless steel
Suitable for Steel,stainless steel,nickel alloy,Titanium alloy,cast iron,plastic and other materials



Standard Sizes

Size Flute Length of End Mills(mm)
Flat end Ball Nose Round nose
D1*D4*50 3 2 3
D1.5*D4*50 4 3 4
D2*D4*50 5 4 5
D2.5*D4*50 6 5 6
D3*D4*50 8 6 8
D3*D3*50 8 6 8
D3.5*D4*50 9 7 9
D4*D4*50 10 8 10
D1*D6*50 3 2 3
D1.5*D6*50 4 3 4
D2*D6*50 5 4 5
D2.5*D6*50 6 5 6
D3*D6*50 8 6 8
D3.5*D6*50 9 7 9
D4*D6*50 10 8 10
D6*D6*50 13 10 13
D6*D6*50 15 12 15
D7*D8*60 17 14 17
D8*D8*60 20 16 20
D10*75 25 20 25
D12*75 30 24 30
D14*100 45 28 35
D16*100 45 32 40
D18*100 45 36 40
D20*100 45 40 40



Flute Length of Extended End Mills(mm)


D3*D4*75 12 6 12
D4*D4*75 16 8 14
D5*D6*75 18 10 15
D6*D6*75 24 12 20
D8*75 25 16 25
D3*D4*100 12 6 15
D4*D4*100 20 8 15
D5*D6*100 20 10 20
D6*D6*100 30 12 25
D8*D8*100 35 16 30
D10*100 40 20 30
D12*100 45 24 35
D6*D6*150 45 12 40
D8*D8*150 50 16 45
D10*150 55 20 50
D12*150 55 24 55
D14*150 60 28 60
D16*150 70 32 65
D18*150 70 36 70
D20*150 70 40 70



HISTORY

XINPENG TOOLS is established from 2003, with near 20 years' experience in designing and manufacturing solid carbide end mill cutters and other cutting tools, like CNC insert,thread Mill Cutter, tungsten saw blade, we offer Customized Milling Tools also.
On 16th, June 2003, CHANGZHOU XINPENG TOOLS MANUFACTURING CO.,LTD was formally registered and established.
In October 2003, A professional R&D team was set up to develop new product projects, laying a solid foundation for future development.
In 2005 3 AXIS CNC grinders were imported from Taiwan.
In 2007, XINPENG TOOLS expanded the factory scale from 1000 square meters to 5000 square meters.
In 2009, Zoller Inspection machine was imported from Germany.
In 2011, Dongguan Branch was established to deal with after-sales problems for customers in South China.
In 2012, more high-precision CNC grinding machines and other world-class processing equipment were imported From Germany.
In 2013,tool measuring instruments, fine-tuning instruments,OD run out instruments and other tool detection equipment were imported.
In 2014, The production department continued to increase the number of machines, including grinders and DMG laser machines imported from Germany, and the production capacity of the products reached a new level.
In 2015, The company established the ministry of foreign trade, which is mainly responsible for the foreign market, to increase our company's competition in the same industry abroad.
In 2016, KTC branch was registered and established.
In 2017, We purchased German saacke five-axis CNC machines and haller CNC machines.
In 2019,We invited foreign experts to guide our work and provide theoretical learning for our engineers.
