Corner Rounding End Mill Cutter Bit Carbide Corner Round End Milling Tool for Milling Cutter CNC

Minimum Order Quantity : 1PC Price : Negotiation
Packaging Details : 1PC/ PVC Packing, 10pcs PVC Packing/Pack... Delivery Time : 1-35days
Payment Terms : T/T, L/C,Paypal... Supply Ability : 10000pcs/week
Place of Origin: MADE IN CHINA Brand Name: KTC
Certification: CCC Model Number: N550TC

Detail Information

Product Name: Corner Rounding End Mill Cutter Bit Carbide Corner Round End Milling Tool For Milling Cutter CNC Raw Material: YL10.2 / K30
Co: 10% Coating: TiSiN
Hardness: >91.5HRA Cutting Diameter: As Requested
Upto: HRC55 Suitable For: Aluminum,plastic And Other Materials
High Light:

carbide mill bits

,

solid carbide milling cutters

Product Description

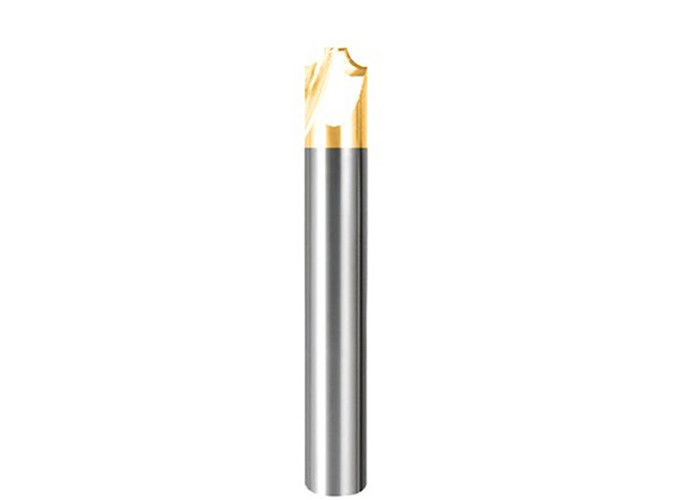

Corner Rounding End Mill Cutter Bit Carbide Corner Round End Milling Tool for Milling Cutter CNC





The Solid Carbide Corner Rounding End Mills are used for rounding edges of workpieces. The straight flute ensures a precise radius without profile distortion .

The outlet slope of 5 ° at both Sides of the Radius allows a clean and easy produce of round workpiece outer edges.

Our Solid Carbide quarter circle cutters have a corrected landwidth, in the radius range, so that a good stability of the cutting edge is generated .



Specifications



Raw Material YL10.2 / K30
WC 90%
Co 10%
TRS >4100N/mm2
Hardness >91.5HRA
A.O.L 50mm-75mm
Grain size 0.8μm
Upto HRC55
Flutes No 4F
Coating TiSiN
Suitable for Aluminum,plastic and other materials



Standard Sizes

Name Size
Corner Radius End Mills/Milling cutters φ4*50*Inner R0.5-2T/4T
φ4*50*Inner R0.75-2T/4T
φ4*50*Inner R1-2T/4T
φ6*50*Inner R1-2T/4T
φ6*50*Inner R1.5-2T/4T
φ6*50*Inner R2-2T/4T
φ8*50*Inner R2.5-2T/4T
φ8*50*Inner R3-2T/4T
φ10*60*Inner R4-4T
φ12*60*Inner R5-4T
φ14*75*Inner R6-4T

Corner Rounding End Mill Cutter Bit Carbide Corner Round End Milling Tool for Milling Cutter CNC 0
