8mm 9mm Carbide Corner Radius End Mill Cutting Tools For Steel Stainless Steel
Contact Person : KING
Phone Number : 86-18115005888
WhatsApp : +8618115005888
| Minimum Order Quantity : | 1PC | Price : | Negotiation |
|---|---|---|---|
| Packaging Details : | 1PC/ PVC Packing, 10pcs PVC Packing/Pack... | Delivery Time : | 1-35days |
| Payment Terms : | T/T, L/C,Paypal... | Supply Ability : | 10000pcs/week |
| Place of Origin: | MADE IN CHINA | Brand Name: | KTC |
|---|---|---|---|
| Certification: | CCC | Model Number: | A380CR |
|
Detail Information |
|||
| Product Name: | Tungsten Carbide Corner Radius End Mill / High Speed Steel Milling Cutters For Aluminum | Raw Material: | K30 / YL10.2 |
|---|---|---|---|
| Upto: | HRC50 | Hardness: | >91HRA |
| Cutting Diameter: | Based On The Flute Length | Suitable For: | Aluminum,plastic And Other Materials |
| High Light: | indexable corner rounding end mill,corner radius milling cutters,High Speed Steel Milling Cutters |
||
Product Description

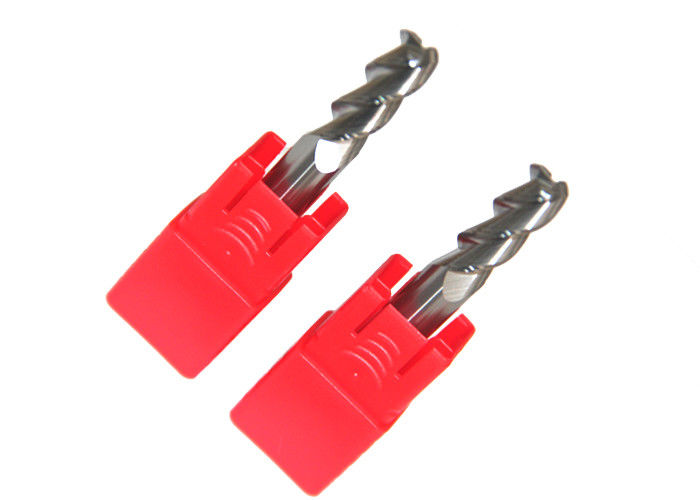

Tungsten Carbide Corner Radius End Mill / High Speed Steel Milling Cutters for Aluminum
Specifications
A380CR high gloss aluminum milling cutter series adopt domestic high-quality fine grain tungsten steel material, flexural strength: 4100mpa, grain size: 0.8 μm, not easy to break the edge. A new special aluminum milling cutter with color coating is introduced, which increases the wear resistance of the cutter. The unique groove design and the polishing treatment of the front cutting edge and groove are adopted to increase the cutting performance. It is especially suitable for efficient and high gloss machining of aluminum alloy (6 and 7 series aluminum) materials.
| Raw Material | K30 / YL10.2 |
| TRS | >4100N/mm2 |
| Hardness | >91HRA |
| A.O.L | 50mm-150mm |
| Grain size | 0.8 μm |
| Upto | HRC50 |
| Flutes No | 3F |
| Suitable for | Aluminum,plastic and other materials |
Standard Sizes
| Size | Flute Length of End Mills(mm) |
| Aluminum Use | |
| D1*D4*50 | 3 |
| D1.5*D4*50 | 4 |
| D2*D4*50 | 5 |
| D2.5*D4*50 | 6 |
| D3*D4*50 | 8 |
| D3*D3*50 | 8 |
| D3.5*D4*50 | 9 |
| D4*D4*50 | 10 |
| D1*D6*50 | 3 |
| D1.5*D6*50 | 4 |
| D2*D6*50 | 5 |
| D2.5*D6*50 | 6 |
| D3*D6*50 | 8 |
| D3.5*D6*50 | 9 |
| D4*D6*50 | 10 |
| D6*D6*50 | 13 |
| D6*D6*50 | 15 |
| D7*D8*60 | 17 |
| D8*D8*60 | 20 |
| D10*75 | 25 |
| D12*75 | 30 |
| D14*100 | 35 |
| D16*100 | 40 |
| D18*100 | 40 |
| D20*100 | 40 |
|
Flute Length of Extended End Mills(mm)
|
|
| D3*D4*75 | 12 |
| D4*D4*75 | 14 |
| D5*D6*75 | 15 |
| D6*D6*75 | 20 |
| D8*75 | 25 |
| D3*D4*100 | 15 |
| D4*D4*100 | 15 |
| D5*D6*100 | 20 |
| D6*D6*100 | 25 |
| D8*D8*100 | 30 |
| D10*100 | 30 |
| D12*100 | 35 |
| D6*D6*150 | 40 |
| D8*D8*150 | 45 |
| D10*150 | 50 |
| D12*150 | 55 |
| D14*150 | 60 |
| D16*150 | 65 |
| D18*150 | 70 |
| D20*150 | 70 |
