Product Description

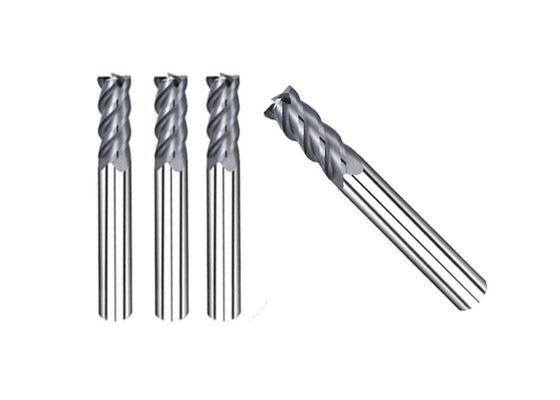

Aluminum Cutting Hard Milling End Mills Black or Copper Color Optional
Every good machinist knows you need all the options you can get to tackle difficult engineering challenges. From varying diameters; stub, regular, long & extra-long lengths, to square end; corner radius & ball ends options, there is a Conical Tapered Carbide end mill. The three and four flute designs facilitate excellent chip evacuation and maximize flute engagement for an improved finish every time. Our tapered end mills are the standard bearer of the industry and come in thousands of configurations.
Workpiece geometries are continuing to become considerably more complex, with pricing that is exponentially more competitive. Our Conical Tapered Carbide end mills feature advanced variable geometries to reduce harmonics, increase speeds and feeds and improve cycle times. Whether you need to finish sharp corners, contour mill with clearance, machine draft angles, add chamfers, finish cavities or taper holes; no one has a larger selection of in stock items, or the years of expertise, to help you select the right tool like we do.
Specifications
E600 high performance milling cutter series is made of domestic well-known high-quality fine grain tungsten steel material, with flexural strength of 4300mpa and grain size of 0.4 μm, and is coated with AlTiN or TiSiN imported from Switzerland. The cutter is designed with large helix angle, which can realize high-speed and efficient machining, especially suitable for medium and high carbon steel, die steel, pre-hardened steel and other materials processing. With high precision quality control, and full inspection, all E600 series end mills are delivered with 100% qualification rate.
| Material |
GU25UF |
| WC |
88% |
| Co |
12% |
| TRS |
>4300N/mm2 |
| Hardness |
>92HRA |
| A.O.L |
50mm-150mm |
| Grain size |
0.4μm |
| Upto |
HRC60 |
| Flutes No |
4 Flutes |
| Coating |
AlTiN or TiSiN |
| Suitable for |
Steel,stainless steel,nickel alloy,Titanuim alloy,cast iron,plastic and other materials |
Coating:
| Item |
AlTiN |
TiSiN |
| Hardness(HV): |
3200 |
3600 |
| Thickness(μm): |
2.5-3 |
3 |
| Oxidation Temp(°): |
900 |
1000 |
| frictional Coefficient: |
0.3 |
0.45 |
| Color: |
Black |
Copper |
Standard Sizes
| Size |
Flute Length of End Mills(mm) |
| Flat end |
Ball Nose |
Round nose |
| D1*D4*50 |
3 |
2 |
3 |
| D1.5*D4*50 |
4 |
3 |
4 |
| D2*D4*50 |
5 |
4 |
5 |
| D2.5*D4*50 |
6 |
5 |
6 |
| D3*D4*50 |
8 |
6 |
8 |
| D3*D3*50 |
8 |
6 |
8 |
| D3.5*D4*50 |
9 |
7 |
9 |
| D4*D4*50 |
10 |
8 |
10 |
| D1*D6*50 |
3 |
2 |
3 |
| D1.5*D6*50 |
4 |
3 |
4 |
| D2*D6*50 |
5 |
4 |
5 |
| D2.5*D6*50 |
6 |
5 |
6 |
| D3*D6*50 |
8 |
6 |
8 |
| D3.5*D6*50 |
9 |
7 |
9 |
| D4*D6*50 |
10 |
8 |
10 |
| D6*D6*50 |
13 |
10 |
13 |
| D6*D6*50 |
15 |
12 |
15 |
| D7*D8*60 |
17 |
14 |
17 |
| D8*D8*60 |
20 |
16 |
20 |
| D10*75 |
25 |
20 |
25 |
| D12*75 |
30 |
24 |
30 |
| D14*100 |
45 |
28 |
35 |
| D16*100 |
45 |
32 |
40 |
| D18*100 |
45 |
36 |
40 |
| D20*100 |
45 |
40 |
40 |
|
Flute Length of Extended End Mills(mm)
|
| D3*D4*75 |
12 |
6 |
12 |
| D4*D4*75 |
16 |
8 |
14 |
| D5*D6*75 |
18 |
10 |
15 |
| D6*D6*75 |
24 |
12 |
20 |
| D8*75 |
25 |
16 |
25 |
| D3*D4*100 |
12 |
6 |
15 |
| D4*D4*100 |
20 |
8 |
15 |
| D5*D6*100 |
20 |
10 |
20 |
| D6*D6*100 |
30 |
12 |
25 |
| D8*D8*100 |
35 |
16 |
30 |
| D10*100 |
40 |
20 |
30 |
| D12*100 |
45 |
24 |
35 |
| D6*D6*150 |
45 |
12 |
40 |
| D8*D8*150 |
50 |
16 |
45 |
| D10*150 |
55 |
20 |
50 |
| D12*150 |
55 |
24 |
55 |
| D14*150 |
60 |
28 |
60 |
| D16*150 |
70 |
32 |
65 |
| D18*150 |
70 |
36 |
70 |
| D20*150 |
70 |
40 |
70 |
FAQ
1. Where are your factory located? If I visit your factory, how can I go there?
Our factory located in Changzhou city, Jiangsu province.
2. What are your main products?
Our main products are carbide cutting tools, including end mill, face mill, drill bits etc.
3. What raw material you use?
We have rods with 3-4 types hardness, hrc45, hrc55, hrc60,hrc65.. Your work piece hardness decides what rods are suitable for.
5. How to ensure the quality?
We have precision detection machine, quality inspectors check cutters one by one.
6. How to deal with the cutters under verified?
These under verified cutters are all scraped.
7. I only have the drawings of work pieces? can you design cutters for me?
Yes, of course, show me work piece drawing, I will show you cutters’ drawing.
9. How long can you deliver goods?
If we have stock, goods will be shipped by next day, if not in stock, 7-35 days.
10. Can I choose the color of plastic pipe?
Yes, we have such as black, blue, red, yellow etc. color.
11. Can you make stickers with our logo and laser on cutters’ shanks?
Yes. We can print stickers with your logo and laser on shanks.
