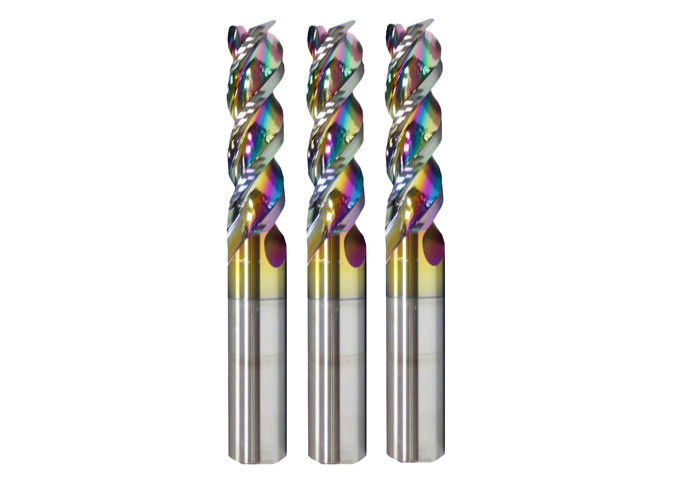

Solid Carbide Aluminum End Mill Bits For Aluminum CNC Milling Long Service

Name: Solid Carbide Aluminum End Mill Bits For Aluminum CNC Milling Long Service
Brand: KTC
SKU: A380TC
Price: 1.00 USD
Availability: InStock
Rating: 5 (132 reviews)

Minimum Order Quantity :	1PC	Price :	Negotiation
Packaging Details :	1PC/ PVC Packing, 10pcs PVC Packing/Pack...	Delivery Time :	1-35days
Payment Terms :	T/T, L/C,Paypal...	Supply Ability :	10000pcs/week

Place of Origin:	MADE IN CHINA	Brand Name:	KTC
Certification:	CCC	Model Number:	A380TC

Detail Information
Product Name:	End Mills	Raw Material:	K40 & WF25
Upto:	HRC50	Coating:	TC100
Hardness:	>91HRA	Cutting Diameter:	Based On The Flute Length
Suitable For:	Aluminum,plastic And Other Materials	Machine Type:	CNC Milling Machine
High Light:	aluminum cutting end mills , tungsten carbide end mill , 3 Flutes Aluminum End Mill Bits

Product Description

Solid Carbide Aluminum End Mill Bits For Aluminum CNC Milling Long Service

KTC Tungsten Carbide End Mills for Aluminum

Specifications:

The simple truth is that the Carbide stay sharper for much longer than you’ll be able to find with nearly any material, but every single end mill you purchase made of this material is going to represent a significant investment.

Machining relies on slowly taking chips off of material, although you can end up with a pretty smooth cut at the end of the day. Aluminum breaks differently than steel and has a tendency to clog up when used with the same bits as you’d use to machine steel. This is mostly due to the softness of the material.

A380TC high gloss aluminum milling cutter series adopt domestic high-quality fine grain tungsten steel material, flexural strength: 4100mpa, grain size: 0.6 μm, not easy to break the edge. A new special aluminum milling cutter with color coating is introduced, which increases the wear resistance of the cutter. The unique groove design and the polishing treatment of the front cutting edge and groove are adopted to increase the cutting performance. It is especially suitable for efficient and high gloss machining of aluminum alloy (6 and 7 series aluminum) materials. With high precision quality control, and full inspection, all A380TC series end mills are delivered with 100% qualification rate.

Raw Material	K40 & WF25
TRS	>4100N/mm2
Hardness	>91HRA
A.O.L	50mm-150mm
Grain size	0.6 μm
Upto	HRC50
Flutes No	3F
Coating	TC100
Suitable for	Aluminum,plastic and other materials

Standard Sizes

Size	Flute Length of End Mills(mm)
Size	Aluminum Use
D1D450	3
D1.5D450	5
D2D450	6
D2.5D450	8
D3D450	9
D3D350	9
D3.5D450	11
D4D450	12
D1D650	3
D1.5D650	5
D2D650	6
D2.5D650	8
D3D650	9
D3.5D650	11
D4D650	12
D6D650	15
D6D650	18
D7D860	20
D8D860	24
D10*75	30
D12*75	35
D14*100	45
D16*100	45
D18*100	45
D20*100	45
Flute Length of Extended End Mills(mm)
D3D475	12
D4D475	16
D5D675	18
D6D675	25
D8*75	30
D3D4100	15
D4D4100	20
D5D6100	30
D6D6100	30
D8D8100	35
D10*100	40
D12*100	45
D6D6150	40
D8D8150	50
D10*150	55
D12*150	55
D14*150	60
D16*150	70
D18*150	70
D20*150	70
