High Speed Custom Hard Milling Aluminum End Mills / Cnc Milling Bits

Minimum Order Quantity : 10 pcs Price : Negotiation
Packaging Details : 1PC/ PVC Packing, 10pcs PVC Packing/Pack... Delivery Time : 1-35days
Payment Terms : T/T, L/C,Paypal... Supply Ability : 10000pcs/week
Place of Origin: MADE IN CHINA Brand Name: KTC
Certification: CCC Model Number: A380TC

Detail Information

Product Name: End Mills Raw Material: K40 & WF25
Upto: HRC50 Coating: TC100
Hardness: >91HRA Cutting Diameter: Based On The Flute Length
Suitable For: Aluminum,plastic And Other Materials Machine Type: CNC Milling Machine
High Light:

3 flute end mill aluminum

,

tungsten carbide end mill

,

High Speed aluminum cutting end mills

Product Description

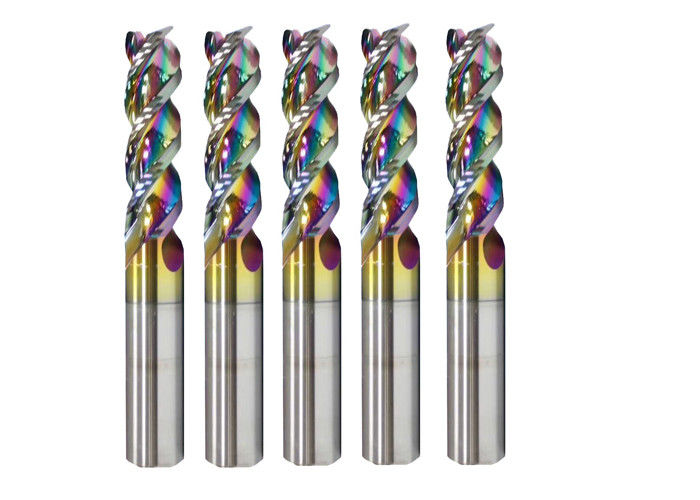

High Speed Custom Hard Milling Aluminum End Mills / Cnc Milling Bits


KTC Tungsten Carbide End Mills for Aluminum





APPLICATIONS:

High stock removal rates at high speeds and feeds, excellent finish quality and extended tool life are the major benefits of these ranges.

Can be used in a wide range of applications, with excellent results achieved in the aerospace, automotive and die and mould industries.

Effective in high-speed machining, conventional milling and MQL applications.

Designed for customers machining a large amount of aluminium products as significantly reduces machining time in aluminium cutting.



Specifications:
A380TC high gloss aluminum milling cutter series adopt domestic high-quality fine grain tungsten steel material, flexural strength: 4100mpa, grain size: 0.6 μm, not easy to break the edge. A new special aluminum milling cutter with color coating is introduced, which increases the wear resistance of the cutter. The unique groove design and the polishing treatment of the front cutting edge and groove are adopted to increase the cutting performance. It is especially suitable for efficient and high gloss machining of aluminum alloy (6 and 7 series aluminum) materials. With high precision quality control, and full inspection, all A380TC series end mills are delivered with 100% qualification rate.

Raw Material K40 & WF25
TRS >4100N/mm2
Hardness >91HRA
A.O.L 50mm-150mm
Grain size 0.6 μm
Upto HRC50
Flutes No 3F
Coating TC100
Suitable for Aluminum,plastic and other materials


Standard Sizes

Size Flute Length of End Mills(mm)
Aluminum Use
D1*D4*50 3
D1.5*D4*50 5
D2*D4*50 6
D2.5*D4*50 8
D3*D4*50 9
D3*D3*50 9
D3.5*D4*50 11
D4*D4*50 12
D1*D6*50 3
D1.5*D6*50 5
D2*D6*50 6
D2.5*D6*50 8
D3*D6*50 9
D3.5*D6*50 11
D4*D6*50 12
D6*D6*50 15
D6*D6*50 18
D7*D8*60 20
D8*D8*60 24
D10*75 30
D12*75 35
D14*100 45
D16*100 45
D18*100 45
D20*100 45



Flute Length of Extended End Mills(mm)



D3*D4*75 12
D4*D4*75 16
D5*D6*75 18
D6*D6*75 25
D8*75 30
D3*D4*100 15
D4*D4*100 20
D5*D6*100 30
D6*D6*100 30
D8*D8*100 35
D10*100 40
D12*100 45
D6*D6*150 40
D8*D8*150 50
D10*150 55
D12*150 55
D14*150 60
D16*150 70
D18*150 70
D20*150 70



After service:



1. If you are not satisfied with your purchase, you can exchange the item. The buyer is responsible for all further shipping costs.







2. The buyer must contact us within 3 days of delivery if they wish to exchange defective or incorrectly shipped items.







3. Exchange Steps:All items must be returned in their original condition, in order to quality for an exchange.







1. Contact us via email or calls;



2. Provide details as much as possible about the proble you are having;



3. Authorization to return the item will be issued;



4. Return the item for agreed exchange.







4. Please kindly note that: We do not cover any items for damage after use or as the result of water damage.
