8mm 9mm Carbide Corner Radius End Mill Cutting Tools For Steel Stainless Steel
Contact Person : KING
Phone Number : 86-18115005888
WhatsApp : +8618115005888
| Minimum Order Quantity : | 1PC | Price : | Negotiation |
|---|---|---|---|
| Packaging Details : | 1PC/ PVC Packing, 10pcs PVC Packing/Pack... | Delivery Time : | 1-35days |
| Payment Terms : | T/T, L/C,Paypal... | Supply Ability : | 10000pcs/week |
| Place of Origin: | MADE IN CHINA | Brand Name: | KTC |
|---|---|---|---|
| Certification: | CCC | Model Number: | E600 |
|
Detail Information |
|||
| Product Name: | Tungsten Carbide Radius Cutter End Mill For Steel Titanium | Raw Material: | GU25UF |
|---|---|---|---|
| Coating: | AlTiN Or TiSiN | Color: | Black/Copper |
| Hardness: | >92HRA | Cutting Diameter: | As Requested |
| Precision: | High Precision | Co: | 12% |
| Grain Size: | 0.4 μm | Flutes No.: | 4 Flutes |
| High Light: | corner rounding milling cutters,indexable corner rounding end mill,4 Flutes Corner Radius End Mill |
||
Product Description

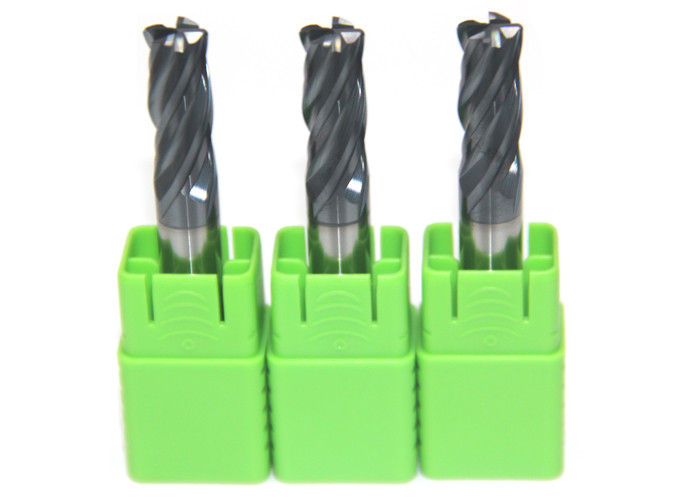

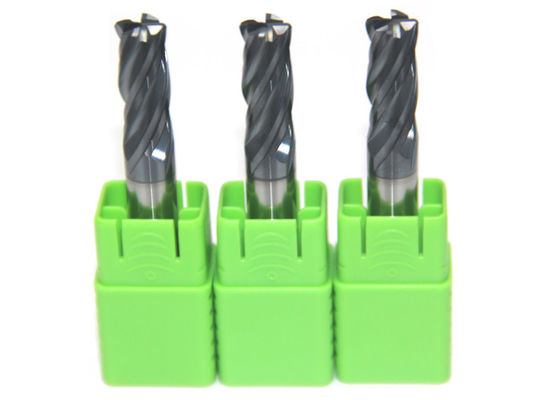

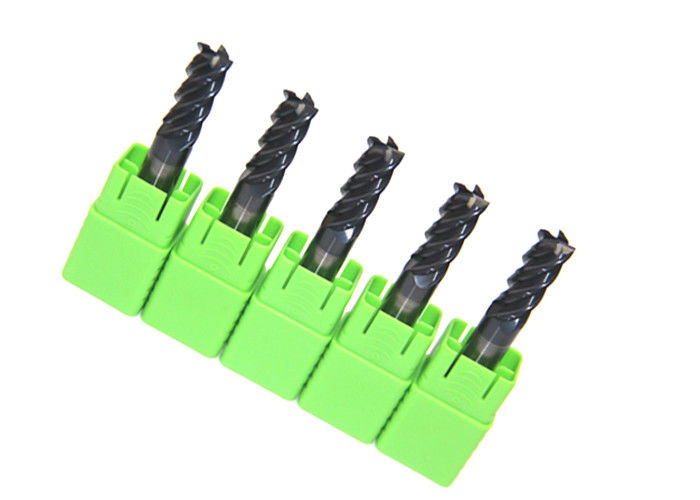

4 FlutesTungsten Carbide Radius Cutter End Mill For Steel Titanium
Specifications
| Material | GU25UF |
| WC | 88% |
| Co | 12% |
| TRS | >4300N/mm2 |
| Hardness | >92HRA |
| A.O.L | 50mm-150mm |
| Grain size | 0.4μm |
| Upto | HRC60 |
| Flutes No | 4 Flutes |
| Coating | AlTiN or TiSiN |
| Suitable for | Steel,stainless steel,nickel alloy,Titanuim alloy,cast iron,plastic and other materials |
Coating:
| Item | AlTiN | TiSiN |
| Hardness(HV): | 3200 | 3600 |
| Thickness(μm): | 2.5-3 | 3 |
| Oxidation Temp(°): | 900 | 1000 |
| frictional Coefficient: | 0.3 | 0.45 |
| Color: | Black | Copper |
Standard Sizes
| Size | Flute Length of End Mills(mm) | ||
| Flat end | Ball Nose | Round nose | |
| D1*D4*50 | 3 | 2 | 3 |
| D1.5*D4*50 | 4 | 3 | 4 |
| D2*D4*50 | 5 | 4 | 5 |
| D2.5*D4*50 | 6 | 5 | 6 |
| D3*D4*50 | 8 | 6 | 8 |
| D3*D3*50 | 8 | 6 | 8 |
| D3.5*D4*50 | 9 | 7 | 9 |
| D4*D4*50 | 10 | 8 | 10 |
| D1*D6*50 | 3 | 2 | 3 |
| D1.5*D6*50 | 4 | 3 | 4 |
| D2*D6*50 | 5 | 4 | 5 |
| D2.5*D6*50 | 6 | 5 | 6 |
| D3*D6*50 | 8 | 6 | 8 |
| D3.5*D6*50 | 9 | 7 | 9 |
| D4*D6*50 | 10 | 8 | 10 |
| D6*D6*50 | 13 | 10 | 13 |
| D6*D6*50 | 15 | 12 | 15 |
| D7*D8*60 | 17 | 14 | 17 |
| D8*D8*60 | 20 | 16 | 20 |
| D10*75 | 25 | 20 | 25 |
| D12*75 | 30 | 24 | 30 |
| D14*100 | 45 | 28 | 35 |
| D16*100 | 45 | 32 | 40 |
| D18*100 | 45 | 36 | 40 |
| D20*100 | 45 | 40 | 40 |
|
Flute Length of Extended End Mills(mm)
|
|||
| D3*D4*75 | 12 | 6 | 12 |
| D4*D4*75 | 16 | 8 | 14 |
| D5*D6*75 | 18 | 10 | 15 |
| D6*D6*75 | 24 | 12 | 20 |
| D8*75 | 25 | 16 | 25 |
| D3*D4*100 | 12 | 6 | 15 |
| D4*D4*100 | 20 | 8 | 15 |
| D5*D6*100 | 20 | 10 | 20 |
| D6*D6*100 | 30 | 12 | 25 |
| D8*D8*100 | 35 | 16 | 30 |
| D10*100 | 40 | 20 | 30 |
| D12*100 | 45 | 24 | 35 |
| D6*D6*150 | 45 | 12 | 40 |
| D8*D8*150 | 50 | 16 | 45 |
| D10*150 | 55 | 20 | 50 |
| D12*150 | 55 | 24 | 55 |
| D14*150 | 60 | 28 | 60 |
| D16*150 | 70 | 32 | 65 |
| D18*150 | 70 | 36 | 70 |
| D20*150 | 70 | 40 | 70 |
Material
end mills are made either out of cobalt steel alloys (known as high speed steel, or HSS), or from tungsten carbide in a cobalt lattice (colloquially shortened to "carbide"). The latter option is considerably harder, more rigid, and more resistant. Carbide tools can be run at speeds 2 to 2.5 times faster than HSS tools. When using carbide tools ensure that your machine tool is rigid with a solid spindle and that holders have little or no runout. Due to the brittle nature of carbide and the speeds at which carbide tools are typically run, rigidity is critical to prevent tool breakage.
