Tungsten Solid Carbide Corner Radius End Mills With Special Angle Design

Minimum Order Quantity : 10 pcs Price : Negotiation
Packaging Details : 1PC/ PVC Packing, 10pcs PVC Packing/Pack... Delivery Time : 1-35days
Payment Terms : T/T, L/C,Paypal... Supply Ability : 10000pcs/week
Place of Origin: MADE IN CHINA Brand Name: KTC
Certification: CCC Model Number: E550

Detail Information

Product Name: Tungsten Solid Carbide Corner Radius End Mills With Special Angle Design Raw Material: YL10.2 / K30
Coating: AlTiN Or TiSiN Color: Black/Copper
Hardness: >91.5HRA Cutting Diameter: Based On Flute Length
High Light:

corner rounding milling cutters


indexable corner rounding end mill


4F AlTiN coated end mill

Product Description

Tungsten Solid Carbide Corner Radius End Mills With Special Angle Design



Most of these coatings are referred to by their chemical composition, such as:
Aluminium titanium nitride (AlTiN) coated end mills, coated using the cathodic arc deposition technique
TiN (a basic yellowish coating that has fallen out of wide use)
TiCN (a popular bluish-grey coating)
TiAlN and AlTiN (an extremely popular dark purple coating)
TiAlCrN, AlTiCrN and AlCrTiN (PVD coating).
PCD veins. Though not a coating some end mills are manufactured with a 'vein' of polycrystalline diamond. The vein is formed in a high temperature-high pressure environment. The vein is formed in a blank and then the material is ground out along the vein to form the cutting edge. Although the tools can be very costly, they can last many times longer than other tooling.




E550 general processing milling cutter series adopt domestic high-quality fine grain tungsten steel material. Flexural strength: 3900mpa, grain size: 0.8μm, with coating (black / Bronze) by imported coating equipment. E550 milling cutters are with special angle design and strict quality control, which is especially suitable for ordinary medium and low carbon steel, alloy steel and other materials processing. With high precision quality control, and full inspection, all E550 series end mills are delivered with 100% qualification rate.


Raw Material YL10.2 / K30
WC 90%
Co 10%
TRS >3900N/mm2
Hardness >91.5HRA
A.O.L 50mm-150mm
Grain size 0.8 μm
Upto HRC55
Flutes No 4F
Coating AlTiN or TiSiN
Suitable for Steel,stainless steel,nickel alloy,Titanium alloy,cast iron, plastic and other materials




Item AlTiN TiSiN
Hardness(HV): 3200 3600
Thickness(μm): 2.5-3 3
Oxidation Temp(°): 900 1000
frictional Coefficient: 0.3 0.45
Color: Black Copper

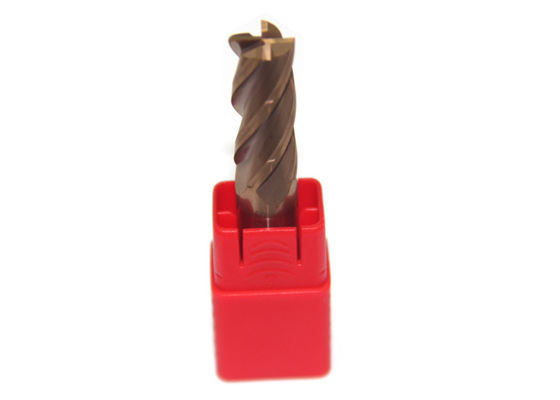

Tungsten Solid Carbide Corner Radius End Mills With Special Angle Design 0

Standard Sizes


Size Flute Length of End Mills(mm)
Flat end Ball Nose Round nose
D1*D4*50 3 2 3
D1.5*D4*50 4 3 4
D2*D4*50 5 4 5
D2.5*D4*50 6 5 6
D3*D4*50 8 6 8
D3*D3*50 8 6 8
D3.5*D4*50 9 7 9
D4*D4*50 10 8 10
D1*D6*50 3 2 3
D1.5*D6*50 4 3 4
D2*D6*50 5 4 5
D2.5*D6*50 6 5 6
D3*D6*50 8 6 8
D3.5*D6*50 9 7 9
D4*D6*50 10 8 10
D6*D6*50 13 10 13
D6*D6*50 15 12 15
D7*D8*60 17 14 17
D8*D8*60 20 16 20
D10*75 25 20 25
D12*75 30 24 30
D14*100 45 28 35
D16*100 45 32 40
D18*100 45 36 40
D20*100 45 40 40
Flute Length of Extended End Mills(mm)
D3*D4*75 12 6 12
D4*D4*75 16 8 14
D5*D6*75 18 10 15
D6*D6*75 24 12 20
D8*75 25 16 25
D3*D4*100 12 6 15
D4*D4*100 20 8 15
D5*D6*100 20 10 20
D6*D6*100 30 12 25
D8*D8*100 35 16 30
D10*100 40 20 30
D12*100 45 24 35
D6*D6*150 45 12 40
D8*D8*150 50 16 45
D10*150 55 20 50
D12*150 55 24 55
D14*150 60 28 60
D16*150 70 32 65
D18*150 70 36 70
D20*150 70 40 70
