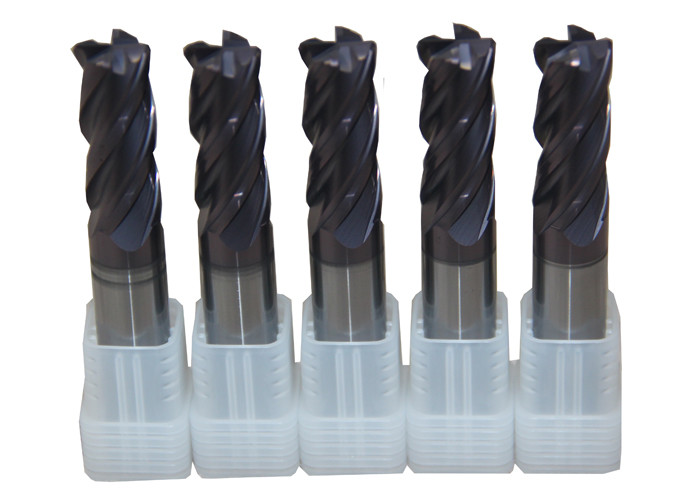

4 Flutes Corner Radius End Mill Cutter For Steel High Performance High Speed

Minimum Order Quantity :	1PC	Price :	Negotiation
Packaging Details :	1PC/ PVC Packing, 10pcs PVC Packing/Pack...	Delivery Time :	1-35days
Payment Terms :	T/T, L/C,Paypal...	Supply Ability :	10000pcs/week

Place of Origin:	MADE IN CHINA	Brand Name:	KTC
Certification:	CCC	Model Number:	E550 MAX

Detail Information
Product Name:	4 Flutes Corner Radius End Mill Cutter For Steel High Performance High Speed	Raw Material:	WF25 / K40
Coating:	TiAlN-nano	Color:	Violet
Hardness:	>92HRA	Cutting Diameter:	Based On The Flute Length
Flutes No.:	4 Flutes	Grain Size:	0.6 μm
A.O.L:	50mm-150mm	Flexural Strength:	4100mpa
Suitable For:	Cooper.Cast Iron.Carbon Steel.Mould Steel	Controlling Mode:	CNC Tooling System, 5 AXIS CNC,CNC Machine
Usage:	General High Speed Cutting,High Speed Machining
High Light:	indexable corner rounding end mill , corner radius milling cutters

Product Description

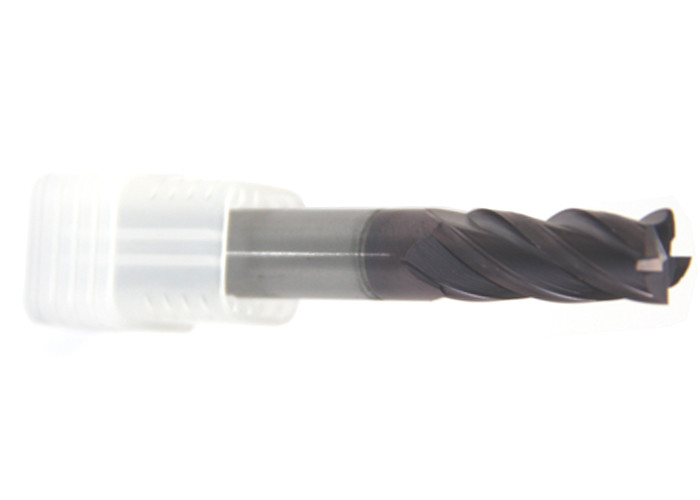

4 Flutes Corner Radius End Mill Cutter For Steel High Performance High Speed

A Corner Rounding End Mill is typically used to add a specific radius to a work piece, or in a finishing operation to remove a sharp edge or burr. Prior to selecting your Corner Rounding End Mill, mull the following considerations over. Choosing the right tool will result in a strong tool with a long usable life, and the desired dimensional qualities on your part. Choosing wrong could result in part inaccuracies and a subpar experience.

Specifications

Raw Material	WF25 / K40
WC	88%
Co	12%
TRS	>4100N/mm2
Hardness	>92HRA
A.O.L	50mm-150mm
Grain size	0.6 μm
Upto	HRC58
Flutes No	4F
Coating	TiAlN-nano
Suitable for	Steel,stainless steel,nickel alloy,Titanium alloy,cast iron,plastic and other materials

Coating:

Item	TiAlN-nano
Hardness(HV):	2800
Thickness(μm):	2.5-3
Oxidation Temp(°):	800
frictional Coefficient:	0.3
Color:	Violet

Standard Sizes

Size	Flute Length of End Mills(mm)
Size	Flat end	Ball Nose	Round nose
D1D450	3	2	3
D1.5D450	4	3	4
D2D450	5	4	5
D2.5D450	6	5	6
D3D450	8	6	8
D3D350	8	6	8
D3.5D450	9	7	9
D4D450	10	8	10
D1D650	3	2	3
D1.5D650	4	3	4
D2D650	5	4	5
D2.5D650	6	5	6
D3D650	8	6	8
D3.5D650	9	7	9
D4D650	10	8	10
D6D650	13	10	13
D6D650	15	12	15
D7D860	17	14	17
D8D860	20	16	20
D10*75	25	20	25
D12*75	30	24	30
D14*100	45	28	35
D16*100	45	32	40
D18*100	45	36	40
D20*100	45	40	40
Flute Length of Extended End Mills(mm)
D3D475	12	6	12
D4D475	16	8	14
D5D675	18	10	15
D6D675	24	12	20
D8*75	25	16	25
D3D4100	12	6	15
D4D4100	20	8	15
D5D6100	20	10	20
D6D6100	30	12	25
D8D8100	35	16	30
D10*100	40	20	30
D12*100	45	24	35
D6D6150	45	12	40
D8D8150	50	16	45
D10*150	55	20	50
D12*150	55	24	55
D14*150	60	28	60
D16*150	70	32	65
D18*150	70	36	70
D20*150	70	40	70
