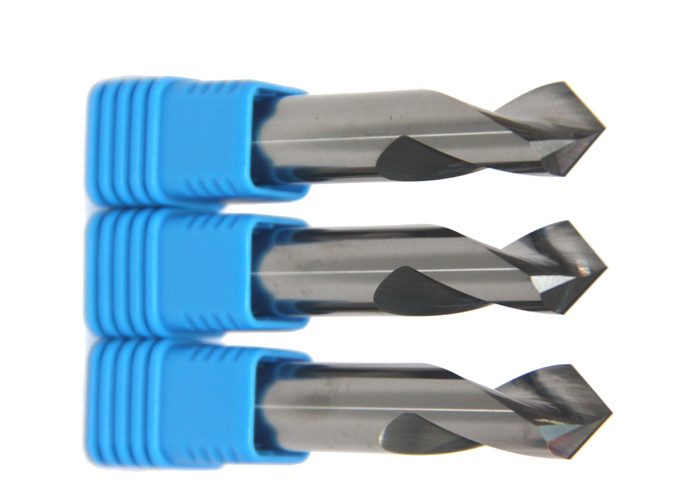

D320 1. KTC Tungsten Carbide Centering chamfer Cutters

Name: D320 1. KTC Tungsten Carbide Centering chamfer Cutters
Brand: KTC
SKU: D320
Rating: 4.5 (141 reviews)

Minimum Order Quantity :	10 pcs	Price :	Negotiation
Packaging Details :	1PC/ PVC Packing, 10pcs PVC Packing/Pack...	Delivery Time :	1-35days
Payment Terms :	T/T, L/C,Paypal...	Supply Ability :	10000pcs/week

Place of Origin:	MADE IN CHINA	Brand Name:	KTC
Certification:	CCC	Model Number:	D320

Detail Information
Product Name:	End Mills	Raw Material:	YL10.2 /K30
Co:	10%	Hardness:	>92HRA
Cutting Diameter:	Based On The Flute Length	Upto:	HRC55
Machine Type:	CNC Milling Machine	Material:	Carbide
Precision:	High Precision	Flexural Strength:	4100mpa
A.O.L:	50mm-100mm	Grain Size:	0.8 μm
Highlight:	carbide chamfer mill , chamfer end mill cutter

Product Description

D320 1. KTC Tungsten Carbide Centering chamfer Cutters

KTC Tungsten Carbide Centering chamfer Cutters

Specifications:

D320 centering chamfer cutter series adopt domestic high-quality fine grain tungsten steel material, flexural strength: 4100mpa, grain size: 0.8μm. There are two categories for aluminum and steel respectively. The centering chamfer cutter for steel is coated by imported coating equipment (black / Bronze), especially suitable for aluminum, copper, ordinary medium and low carbon steel, alloy steel and other materials processing. With high precision quality control, and full inspection, all D320 series end mills are delivered with 100% qualification rate.

Raw Material	YL10.2 /K30
WC	90%
Co	10%
TRS	>4100N/mm2
Hardness	>92HRA
A.O.L	50mm-100mm
Grain size	0.8 μm
Upto	HRC55
Flutes No	2F
Suitable for	Aluminum,plastic and other materials

Standard Sizes

Size	Flute Length(mm)	the Degrees of Angle
D4*50	8	60° 90° 120°
D4*100	8	60° 90° 120°
D6*50	12	60° 90° 120°
D6*100	12	60° 90° 120°
D8*60	16	60° 90° 120°
D8*100	16	60° 90° 120°
D10*75	20	60° 90° 120°
D10*100	20	60° 90° 120°
D12*75	24	60° 90° 120°
D12*100	24	60° 90° 120°
D16*100	32	60° 90° 120°
D20*100	40	60° 90° 120°
