Coated Thread Mill Cutter Finishing Die Steel Pre Hardened Steel Processing
Coated Thread Mill Cutter Finishing Die Steel Pre Hardened Steel Processing Coated Thread Mill Cutter Finishing Die Steel Pre Hardened Steel Processing
Contact Now

Coated Thread Mill Cutter Finishing Die Steel Pre Hardened Steel Processing

Minimum Order Quantity : 10 pcs Price : Negotiation
Packaging Details : 1PC/ PVC Packing, 10pcs PVC Packing/Pack... Delivery Time : 1-35days
Payment Terms : T/T, L/C,Paypal... Supply Ability : 10000pcs/week
Place of Origin: MADE IN CHINA Brand Name: KTC
Certification: CCC Model Number: Coated Thread Mill Cutter

Detail Information
Product Name: End Mills Raw Material: GU25UF
Coating: AlTiN Or TiSiN Color: Black Or Copper
Hardness: >92HRA Cutting Diameter: Based On The Flute Length
Highlight:

thread end mill

,

thread cutting end mill

Product Description

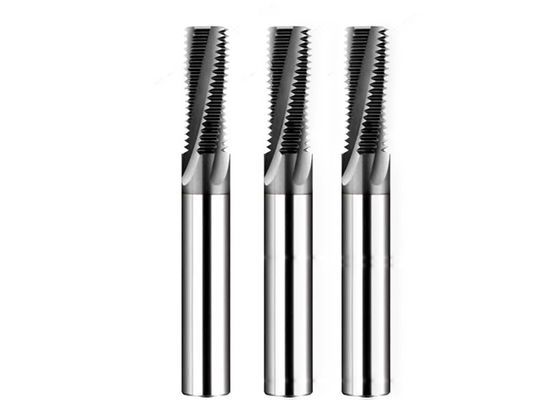

Coated Thread Mill Cutter Finishing Die Steel Pre Hardened Steel Processing



KTC Thread Mill Cutter





Benefits

Simplifies tool selection.

One thread mill can be used for through holes and blind holes.

Produces threads with superior unified form, flank finish and dimensional accuracy.

Pitch diameter can be controlled by CNC machine radius offset, eliminating the need for special or oversize taps.

One thread mill can produce varying thread diameters of the same pitch.

Small machines can produce larger threads because they require less spindle torque.

No high-performance lubricants required, eliminating the need to stop the machine to apply tapping lubricants by hand.



Specifications



The tungsten steel thread milling cutter is made of high-quality ultrafine tungsten steel material at home and abroad, with bending strength of 4300mpa, particle size of 0.4μm and coating of AlTiN or TiSiN. The coating adopts AlTiN or TiSiN imported from Switzerland. High precision quality control, self inspection rate is 100%, qualified rate is 100%. With this kind of tool, the cutting in thread milling of M1.0 and above can be completed in an instant. Innovative thread milling cutter: core hole drilling and thread milling can be completed in one working step with only one cutter. Especially, thread milling cutter is suitable for copper, aluminum, medium and high carbon steel, die steel, pre-hardened steel and other material hole processing.



Raw Material GU25UF
WC 88%
Co 12%
TRS >4300N/mm2
Hardness >92HRA
A.O.L 50mm-90mm
Grain size 0.4 μm
Upto HRC60
Flutes No 3/4F
Coating AlTiN or TiSiN
Suitable for copper, aluminum, medium and high carbon steel, die steel, pre-hardened steel and other material hole processing



Coating:

Item AlTiN TiSiN
Hardness(HV) 3200 3600
Thickness(UM) 2.5-3 3
Oxidation temp(°) 900 1000
Friction coeffient 0.3 0.45
Color Black Copper



Standard Sizes

UN 60° Inner Thread Mill Cutter for Aluminum
Pitch (TPI) UNC UNF UNEF Shank Dia. Edge Dia. No. of Flutes Flute Length Overall Length Bottom Hole Dia.
36   No.8-36   4 3 3 8.5 50 3.5
32   No.10-32 No.12-3/8-32 4 3.5 3 11.1 50 4
28   No.12-28,1/4-28 7/16,1/2-28 4 4 3 11.8 50 4.6
28   1/4-28 7/16,1/2-28 6 5 3 12.7 57 5.5
28     7/16,1/2-28 10 9.2 4 22.7 75 10.2
24 No.10-24 5/16,3/8-24 9/16,11/16-24 4 3.2 3 10.6 50 3.8
24 No.12-24 5/16,3/8-24 9/16,11/16-24 4 4 3 11.6 50 4.5
24   5/16,3/8-24 9/16,11/16-24 6 6 3 15.9 57 6.8
24   3/8-24 9/16,11/16-24 8 7.8 3 19.1 60 8.5
24     9/16,11/16-24 12 11.9 4 28.6 75 13.2
20 1/4-20 7/16,1/2-20 3/4,1-20 4 4 3 12.7 50 5.2
20   7/16,1/2-20 3/4,1-20 10 9 4 22.9 75 9.8
20   1/2-20 3/4,1-20 10 10 4 25.4 75 11.5
20     3/4,1-20 12 12 4 38.1 75 17.8
18 5/16-18 9/16 11/16,1-11/16-18 6 5.8 3 16.9 57 6.5
18   9/16,5/8-18 11/16,1-11/16-18 10 10 4 29.6 75 12.8
16 3/8-16 3/4-16   8 7.6 3 19.1 60 8
16   3/4-16   12 12 4 28 75 17.5
14 7/16-14 7/8-14   8 8 3 20 60 9.3
14   7/8-14   16 16 4 39.9 90 20.5
13 1/2-13     8 8 3 20 60 10.8
12 9/16-12 1"1-1/2-12   10 10 4 28 75 12.3
12   1"1-1/2-12   16 16 4 40 90 23.5
11 5/8-11     12 12 4 30 75 13.5
10 3/4-10     12 12 4 30 75 16.5
9 7/8-9     16 16 4 38 90 19.5
8 1-8     16 16 4 40 90 22



UN 60° Outer Thread Mill Cutter for Aluminum
Pitch (TPI) UNC UNF Shank Dia. Edge Dia. No. of Flutes Flute Length Overall Length
32 No.8-32   6 6 3 11.91 50
28   No.12-28 6 6 3 12.7 50
24 No.12-24   6 6 3 12.7 50
20 1/4-20   6 6 3 15.4 50
18 5/16-18   8 8 3 16.93 60
16 3/8-16   8 8 3 19.05 60
12 9/16-12   12 12 4 29.6 75



M ISO Standard 60°Inner Thread Mill Cutter for Steel
Pitch (mm) M Coarse Thread M Fine Thread Shank Dia. Edge Dia. No. of Flutes Flute Length Overall Length Bottom Hole Dia.
0.5 M3*0.5   4 2.3 3 6 50 2.5
0.5   M6*0.5 4 4 3 10 50 5.5
0.5   M8-M12*0.5 6 6 3 13 50 7.5
0.6 M3.5*0.6   4 2.7 3 7 50 2.9
0.7 M4*0.7   4 3 3 8 50 3.3
0.75 M4.5*0.75   4 3.4 3 9 50 3.75
0.75   M10-M12*0.75 8 8 3 20 50 9.25
0.8 M5*0.8   4 4 3 10 50 4.2
1 M6*1.0   6 4.8 3 12 57 5.0
1   M8*1.0 6 6 3 16 57 7.0
1   M10*1.0 8 8 3 20 60 9.0
1   M12*1.0 10 10 4 22 75 11.0
1   M16*1.0 12 12 4 22 75 15.0
1   M20-M48*1.0 16 16 4 30 90 19.0
1.25 M8*1.25   6 6 3 16 57 6.75
1.25   M12-M14*1.25 10 10 4 25 75 10.75
1.5 M10*1.5   8 8 3 20 60 8.5
1.5   M12-M20*1.5 10 10 4 28 75 10.5
1.5   M14-M24*1.5 12 12 4 28 75 12.5
1.5   M20-M48*1.5 16 16 4 30 90 18.5
1.75 M12*1.75   10 9.8 4 30 75 10.25
2 M14*2.0 M15-M16*2.0 10 10 4 30 75 12.0
2 M16*2.0 M17-M20*2.0 12 12 4 30 75 14.0
2   M20-M80*2.0 16 16 4 40 90 18.0
2.5 M18-M20*2.5   14 14 4 36 85 15.5
2.5 M20-M80*2.5   16 16 4 40 90 17.5
3 M24*3.0   16 16 4 42 90 21.0
0.75   M6*0.75 6 4.8 3 12 60 5.25
0.75   M8*0.75 6 6 3 16 60 7.25
1.25   M10*1.25 8 8 3 20 60 8.75



M ISO Standard 60°Outer Thread Mill Cutter for Steel
Pitch (mm) M Coarse Thread Shank Dia. Edge Dia. No. of Flutes Flute Length Overall Length
0.5 M3*0.5 4 4 3 6 50
0.7 M4*0.7 4 4 3 8 50
0.75 M4.5*0.75 4 4 3 9 50
0.8 M5*0.8 4 4 3 10 50
1 M6*1.0 6 6 3 13 57
1.25 M8*1.25 6 6 3 16 57
1.5 M10*1.5 8 8 3 20 60
1.75 M12*1.75 10 10 4 28 75
2 M14*2.0 10 10 4 30 75
2.5 M18*2.5 14 14 4 36 85
3 M24*3.0 16 16 4 40 90
