Home ProductsThread Mill CutterHigh Performance Carbide End Mills For Aluminum Steel High Speed Coated
High Performance Carbide End Mills For Aluminum Steel High Speed Coated
High Performance Carbide End Mills For Aluminum Steel High Speed Coated High Performance Carbide End Mills For Aluminum Steel High Speed Coated
Contact Now

High Performance Carbide End Mills For Aluminum Steel High Speed Coated

Minimum Order Quantity : 10 pcs Price : Negotiation
Packaging Details : 1PC/ PVC Packing, 10pcs PVC Packing/Pack... Delivery Time : 1-35days
Payment Terms : T/T, L/C,Paypal... Supply Ability : 10000pcs/week
Place of Origin: MADE IN CHINA Brand Name: KTC
Certification: CCC Model Number: Coated Thread Mill Cutter

Detail Information
Product Name: End Mills Raw Material: GU25UF
Coating: AlTiN Or TiSiN Color: Black Or Copper
Hardness: >92HRA Cutting Diameter: Based On The Flute Length
Highlight:

thread cutting end mill

,

milling machine end mills

Product Description

High Performance Carbide End Mills For Aluminum Steel High Speed Coated

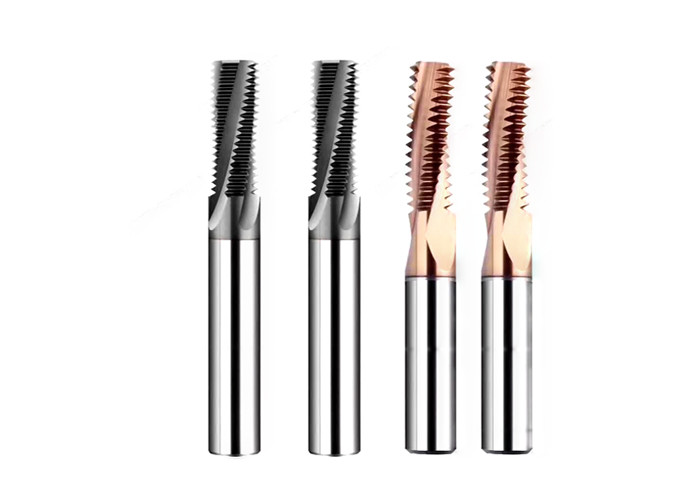

KTC Thread Mill Cutter





Long service life, shortest processing times and excellent end product thread surface quality

We sell and service JBO thread milling cutters , we make some of the highest quality thread mills available focusing on long service life, shortest processing times and an excellent surface quality.

We provide excellent advance and ongoing support for engineers, designers and machinists. We’ll look at your blueprint and advise the best tool for your application and specifications. Please reference catalogs shown on tool specifications.



Specifications



Raw Material GU25UF
WC 88%
Co 12%
TRS >4300N/mm2
Hardness >92HRA
A.O.L 50mm-90mm
Grain size 0.4 μm
Upto HRC60
Flutes No 3/4F
Coating AlTiN or TiSiN
Suitable for copper, aluminum, medium and high carbon steel, die steel, pre-hardened steel and other material hole processing



Coating:

Item AlTiN TiSiN
Hardness(HV) 3200 3600
Thickness(UM) 2.5-3 3
Oxidation temp(°) 900 1000
Friction coeffient 0.3 0.45
Color Black Copper



Standard Sizes

UN 60° Inner Thread Mill Cutter for Aluminum
Pitch (TPI) UNC UNF UNEF Shank Dia. Edge Dia. No. of Flutes Flute Length Overall Length Bottom Hole Dia.
36   No.8-36   4 3 3 8.5 50 3.5
32   No.10-32 No.12-3/8-32 4 3.5 3 11.1 50 4
28   No.12-28,1/4-28 7/16,1/2-28 4 4 3 11.8 50 4.6
28   1/4-28 7/16,1/2-28 6 5 3 12.7 57 5.5
28     7/16,1/2-28 10 9.2 4 22.7 75 10.2
24 No.10-24 5/16,3/8-24 9/16,11/16-24 4 3.2 3 10.6 50 3.8
24 No.12-24 5/16,3/8-24 9/16,11/16-24 4 4 3 11.6 50 4.5
24   5/16,3/8-24 9/16,11/16-24 6 6 3 15.9 57 6.8
24   3/8-24 9/16,11/16-24 8 7.8 3 19.1 60 8.5
24     9/16,11/16-24 12 11.9 4 28.6 75 13.2
20 1/4-20 7/16,1/2-20 3/4,1-20 4 4 3 12.7 50 5.2
20   7/16,1/2-20 3/4,1-20 10 9 4 22.9 75 9.8
20   1/2-20 3/4,1-20 10 10 4 25.4 75 11.5
20     3/4,1-20 12 12 4 38.1 75 17.8
18 5/16-18 9/16 11/16,1-11/16-18 6 5.8 3 16.9 57 6.5
18   9/16,5/8-18 11/16,1-11/16-18 10 10 4 29.6 75 12.8
16 3/8-16 3/4-16   8 7.6 3 19.1 60 8
16   3/4-16   12 12 4 28 75 17.5
14 7/16-14 7/8-14   8 8 3 20 60 9.3
14   7/8-14   16 16 4 39.9 90 20.5
13 1/2-13     8 8 3 20 60 10.8
12 9/16-12 1"1-1/2-12   10 10 4 28 75 12.3
12   1"1-1/2-12   16 16 4 40 90 23.5
11 5/8-11     12 12 4 30 75 13.5
10 3/4-10     12 12 4 30 75 16.5
9 7/8-9     16 16 4 38 90 19.5
8 1-8     16 16 4 40 90 22



UN 60° Outer Thread Mill Cutter for Aluminum
Pitch (TPI) UNC UNF Shank Dia. Edge Dia. No. of Flutes Flute Length Overall Length
32 No.8-32   6 6 3 11.91 50
28   No.12-28 6 6 3 12.7 50
24 No.12-24   6 6 3 12.7 50
20 1/4-20   6 6 3 15.4 50
18 5/16-18   8 8 3 16.93 60
16 3/8-16   8 8 3 19.05 60
12 9/16-12   12 12 4 29.6 75



M ISO Standard 60°Inner Thread Mill Cutter for Steel
Pitch (mm) M Coarse Thread M Fine Thread Shank Dia. Edge Dia. No. of Flutes Flute Length Overall Length Bottom Hole Dia.
0.5 M3*0.5   4 2.3 3 6 50 2.5
0.5   M6*0.5 4 4 3 10 50 5.5
0.5   M8-M12*0.5 6 6 3 13 50 7.5
0.6 M3.5*0.6   4 2.7 3 7 50 2.9
0.7 M4*0.7   4 3 3 8 50 3.3
0.75 M4.5*0.75   4 3.4 3 9 50 3.75
0.75   M10-M12*0.75 8 8 3 20 50 9.25
0.8 M5*0.8   4 4 3 10 50 4.2
1 M6*1.0   6 4.8 3 12 57 5.0
1   M8*1.0 6 6 3 16 57 7.0
1   M10*1.0 8 8 3 20 60 9.0
1   M12*1.0 10 10 4 22 75 11.0
1   M16*1.0 12 12 4 22 75 15.0
1   M20-M48*1.0 16 16 4 30 90 19.0
1.25 M8*1.25   6 6 3 16 57 6.75
1.25   M12-M14*1.25 10 10 4 25 75 10.75
1.5 M10*1.5   8 8 3 20 60 8.5
1.5   M12-M20*1.5 10 10 4 28 75 10.5
1.5   M14-M24*1.5 12 12 4 28 75 12.5
1.5   M20-M48*1.5 16 16 4 30 90 18.5
1.75 M12*1.75   10 9.8 4 30 75 10.25
2 M14*2.0 M15-M16*2.0 10 10 4 30 75 12.0
2 M16*2.0 M17-M20*2.0 12 12 4 30 75 14.0
2   M20-M80*2.0 16 16 4 40 90 18.0
2.5 M18-M20*2.5   14 14 4 36 85 15.5
2.5 M20-M80*2.5   16 16 4 40 90 17.5
3 M24*3.0   16 16 4 42 90 21.0
0.75   M6*0.75 6 4.8 3 12 60 5.25
0.75   M8*0.75 6 6 3 16 60 7.25
1.25   M10*1.25 8 8 3 20 60 8.75



M ISO Standard 60°Outer Thread Mill Cutter for Steel
Pitch (mm) M Coarse Thread Shank Dia. Edge Dia. No. of Flutes Flute Length Overall Length
0.5 M3*0.5 4 4 3 6 50
0.7 M4*0.7 4 4 3 8 50
0.75 M4.5*0.75 4 4 3 9 50
0.8 M5*0.8 4 4 3 10 50
1 M6*1.0 6 6 3 13 57
1.25 M8*1.25 6 6 3 16 57
1.5 M10*1.5 8 8 3 20 60
1.75 M12*1.75 10 10 4 28 75
2 M14*2.0 10 10 4 30 75
2.5 M18*2.5 14 14 4 36 85
3 M24*3.0 16 16 4 40 90



About us

Xinpeng Tools Manufacturing has professional and specific designers, R & D team and a number of ultra-precision equipment.



We can design and manufacture new diamond cutters and alloy milling cutters according to customers' requirements and designs. Our foreign customers are all satisfied with our products.

We have over 32 years' professional designers and Engineers in factory !

Every year, our company develops 50 new products.

We established the fabrication facilities by " " CNC Grinding Machines which supports us serve for more precision product to customers.

Advanced automatic CNC grinding machine and testing equipment are employed

OEM and ODM SERVICE both can be offered.
