Product Description
Plastic Cutting End Mills AlTiN Or TiSiN Coating 100% Self Inspection Rate

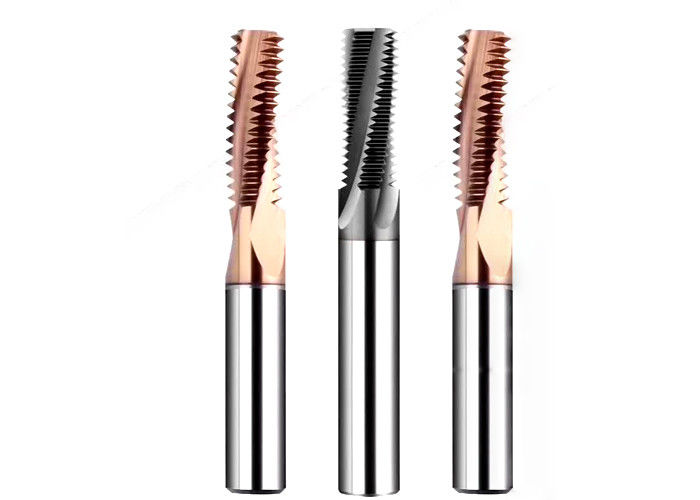

KTC Thread Mill Cutter
Tapping may be the most common method for putting threads into a hole, but it is not always the best method. Difficult to cut materials, small hole sizes, or threading close to the bottom of a blind hole can push the limits of tap capabilities. An alternative way to create threads and overcome these hurdles is through the use of a thread milling cutter. all-carbide thread milling cutters can be made to order to suit specific customer applications by adjusting the cutter diameter, neck length, and number of threads.
Specifications
The tungsten steel thread milling cutter is made of high-quality ultrafine tungsten steel material at home and abroad, with bending strength of 4300mpa, particle size of 0.4μm and coating of AlTiN or TiSiN. The coating adopts AlTiN or TiSiN imported from Switzerland. High precision quality control, self inspection rate is 100%, qualified rate is 100%. With this kind of tool, the cutting in thread milling of M1.0 and above can be completed in an instant. Innovative thread milling cutter: core hole drilling and thread milling can be completed in one working step with only one cutter. Especially, thread milling cutter is suitable for copper, aluminum, medium and high carbon steel, die steel, pre-hardened steel and other material hole processing.
| Raw Material | GU25UF |
| WC | 88% |
| Co | 12% |
| TRS | >4300N/mm2 |
| Hardness | >92HRA |
| A.O.L | 50mm-90mm |
| Grain size | 0.4 μm |
| Upto | HRC60 |
| Flutes No | 3/4F |
| Coating | AlTiN or TiSiN |
| Suitable for | copper, aluminum, medium and high carbon steel, die steel, pre-hardened steel and other material hole processing |
Coating:
| Item | AlTiN | TiSiN |
| Hardness(HV) | 3200 | 3600 |
| Thickness(UM) | 2.5-3 | 3 |
| Oxidation temp(°) | 900 | 1000 |
| Friction coeffient | 0.3 | 0.45 |
| Color | Black | Copper |
Standard Sizes
| UN 60° Inner Thread Mill Cutter for Aluminum | |||||||||
| Pitch (TPI) | UNC | UNF | UNEF | Shank Dia. | Edge Dia. | No. of Flutes | Flute Length | Overall Length | Bottom Hole Dia. |
| 36 | No.8-36 | 4 | 3 | 3 | 8.5 | 50 | 3.5 | ||
| 32 | No.10-32 | No.12-3/8-32 | 4 | 3.5 | 3 | 11.1 | 50 | 4 | |
| 28 | No.12-28,1/4-28 | 7/16,1/2-28 | 4 | 4 | 3 | 11.8 | 50 | 4.6 | |
| 28 | 1/4-28 | 7/16,1/2-28 | 6 | 5 | 3 | 12.7 | 57 | 5.5 | |
| 28 | 7/16,1/2-28 | 10 | 9.2 | 4 | 22.7 | 75 | 10.2 | ||
| 24 | No.10-24 | 5/16,3/8-24 | 9/16,11/16-24 | 4 | 3.2 | 3 | 10.6 | 50 | 3.8 |
| 24 | No.12-24 | 5/16,3/8-24 | 9/16,11/16-24 | 4 | 4 | 3 | 11.6 | 50 | 4.5 |
| 24 | 5/16,3/8-24 | 9/16,11/16-24 | 6 | 6 | 3 | 15.9 | 57 | 6.8 | |
| 24 | 3/8-24 | 9/16,11/16-24 | 8 | 7.8 | 3 | 19.1 | 60 | 8.5 | |
| 24 | 9/16,11/16-24 | 12 | 11.9 | 4 | 28.6 | 75 | 13.2 | ||
| 20 | 1/4-20 | 7/16,1/2-20 | 3/4,1-20 | 4 | 4 | 3 | 12.7 | 50 | 5.2 |
| 20 | 7/16,1/2-20 | 3/4,1-20 | 10 | 9 | 4 | 22.9 | 75 | 9.8 | |
| 20 | 1/2-20 | 3/4,1-20 | 10 | 10 | 4 | 25.4 | 75 | 11.5 | |
| 20 | 3/4,1-20 | 12 | 12 | 4 | 38.1 | 75 | 17.8 | ||
| 18 | 5/16-18 | 9/16 | 11/16,1-11/16-18 | 6 | 5.8 | 3 | 16.9 | 57 | 6.5 |
| 18 | 9/16,5/8-18 | 11/16,1-11/16-18 | 10 | 10 | 4 | 29.6 | 75 | 12.8 | |
| 16 | 3/8-16 | 3/4-16 | 8 | 7.6 | 3 | 19.1 | 60 | 8 | |
| 16 | 3/4-16 | 12 | 12 | 4 | 28 | 75 | 17.5 | ||
| 14 | 7/16-14 | 7/8-14 | 8 | 8 | 3 | 20 | 60 | 9.3 | |
| 14 | 7/8-14 | 16 | 16 | 4 | 39.9 | 90 | 20.5 | ||
| 13 | 1/2-13 | 8 | 8 | 3 | 20 | 60 | 10.8 | ||
| 12 | 9/16-12 | 1"1-1/2-12 | 10 | 10 | 4 | 28 | 75 | 12.3 | |
| 12 | 1"1-1/2-12 | 16 | 16 | 4 | 40 | 90 | 23.5 | ||
| 11 | 5/8-11 | 12 | 12 | 4 | 30 | 75 | 13.5 | ||
| 10 | 3/4-10 | 12 | 12 | 4 | 30 | 75 | 16.5 | ||
| 9 | 7/8-9 | 16 | 16 | 4 | 38 | 90 | 19.5 | ||
| 8 | 1-8 | 16 | 16 | 4 | 40 | 90 | 22 | ||
| UN 60° Outer Thread Mill Cutter for Aluminum | |||||||
| Pitch (TPI) | UNC | UNF | Shank Dia. | Edge Dia. | No. of Flutes | Flute Length | Overall Length |
| 32 | No.8-32 | 6 | 6 | 3 | 11.91 | 50 | |
| 28 | No.12-28 | 6 | 6 | 3 | 12.7 | 50 | |
| 24 | No.12-24 | 6 | 6 | 3 | 12.7 | 50 | |
| 20 | 1/4-20 | 6 | 6 | 3 | 15.4 | 50 | |
| 18 | 5/16-18 | 8 | 8 | 3 | 16.93 | 60 | |
| 16 | 3/8-16 | 8 | 8 | 3 | 19.05 | 60 | |
| 12 | 9/16-12 | 12 | 12 | 4 | 29.6 | 75 | |
| M ISO Standard 60°Inner Thread Mill Cutter for Steel | ||||||||
| Pitch (mm) | M Coarse Thread | M Fine Thread | Shank Dia. | Edge Dia. | No. of Flutes | Flute Length | Overall Length | Bottom Hole Dia. |
| 0.5 | M3*0.5 | 4 | 2.3 | 3 | 6 | 50 | 2.5 | |
| 0.5 | M6*0.5 | 4 | 4 | 3 | 10 | 50 | 5.5 | |
| 0.5 | M8-M12*0.5 | 6 | 6 | 3 | 13 | 50 | 7.5 | |
| 0.6 | M3.5*0.6 | 4 | 2.7 | 3 | 7 | 50 | 2.9 | |
| 0.7 | M4*0.7 | 4 | 3 | 3 | 8 | 50 | 3.3 | |
| 0.75 | M4.5*0.75 | 4 | 3.4 | 3 | 9 | 50 | 3.75 | |
| 0.75 | M10-M12*0.75 | 8 | 8 | 3 | 20 | 50 | 9.25 | |
| 0.8 | M5*0.8 | 4 | 4 | 3 | 10 | 50 | 4.2 | |
| 1 | M6*1.0 | 6 | 4.8 | 3 | 12 | 57 | 5.0 | |
| 1 | M8*1.0 | 6 | 6 | 3 | 16 | 57 | 7.0 | |
| 1 | M10*1.0 | 8 | 8 | 3 | 20 | 60 | 9.0 | |
| 1 | M12*1.0 | 10 | 10 | 4 | 22 | 75 | 11.0 | |
| 1 | M16*1.0 | 12 | 12 | 4 | 22 | 75 | 15.0 | |
| 1 | M20-M48*1.0 | 16 | 16 | 4 | 30 | 90 | 19.0 | |
| 1.25 | M8*1.25 | 6 | 6 | 3 | 16 | 57 | 6.75 | |
| 1.25 | M12-M14*1.25 | 10 | 10 | 4 | 25 | 75 | 10.75 | |
| 1.5 | M10*1.5 | 8 | 8 | 3 | 20 | 60 | 8.5 | |
| 1.5 | M12-M20*1.5 | 10 | 10 | 4 | 28 | 75 | 10.5 | |
| 1.5 | M14-M24*1.5 | 12 | 12 | 4 | 28 | 75 | 12.5 | |
| 1.5 | M20-M48*1.5 | 16 | 16 | 4 | 30 | 90 | 18.5 | |
| 1.75 | M12*1.75 | 10 | 9.8 | 4 | 30 | 75 | 10.25 | |
| 2 | M14*2.0 | M15-M16*2.0 | 10 | 10 | 4 | 30 | 75 | 12.0 |
| 2 | M16*2.0 | M17-M20*2.0 | 12 | 12 | 4 | 30 | 75 | 14.0 |
| 2 | M20-M80*2.0 | 16 | 16 | 4 | 40 | 90 | 18.0 | |
| 2.5 | M18-M20*2.5 | 14 | 14 | 4 | 36 | 85 | 15.5 | |
| 2.5 | M20-M80*2.5 | 16 | 16 | 4 | 40 | 90 | 17.5 | |
| 3 | M24*3.0 | 16 | 16 | 4 | 42 | 90 | 21.0 | |
| 0.75 | M6*0.75 | 6 | 4.8 | 3 | 12 | 60 | 5.25 | |
| 0.75 | M8*0.75 | 6 | 6 | 3 | 16 | 60 | 7.25 | |
| 1.25 | M10*1.25 | 8 | 8 | 3 | 20 | 60 | 8.75 | |
| M ISO Standard 60°Outer Thread Mill Cutter for Steel | ||||||
| Pitch (mm) | M Coarse Thread | Shank Dia. | Edge Dia. | No. of Flutes | Flute Length | Overall Length |
| 0.5 | M3*0.5 | 4 | 4 | 3 | 6 | 50 |
| 0.7 | M4*0.7 | 4 | 4 | 3 | 8 | 50 |
| 0.75 | M4.5*0.75 | 4 | 4 | 3 | 9 | 50 |
| 0.8 | M5*0.8 | 4 | 4 | 3 | 10 | 50 |
| 1 | M6*1.0 | 6 | 6 | 3 | 13 | 57 |
| 1.25 | M8*1.25 | 6 | 6 | 3 | 16 | 57 |
| 1.5 | M10*1.5 | 8 | 8 | 3 | 20 | 60 |
| 1.75 | M12*1.75 | 10 | 10 | 4 | 28 | 75 |
| 2 | M14*2.0 | 10 | 10 | 4 | 30 | 75 |
| 2.5 | M18*2.5 | 14 | 14 | 4 | 36 | 85 |
| 3 | M24*3.0 | 16 | 16 | 4 | 40 | 90 |
