Coated End Mill Bits For Drill Press Stainless Steel Titanium Processing
Contact Person : KING
Phone Number : 86-18115005888
WhatsApp : +8618115005888
| Minimum Order Quantity : | 1PC | Price : | Negotiation |
|---|---|---|---|
| Packaging Details : | 1PC/ PVC Packing, 10pcs PVC Packing/Pack... | Delivery Time : | 1-35days |
| Payment Terms : | T/T, L/C,Paypal... | Supply Ability : | 10000pcs/week |
| Place of Origin: | MADE IN CHINA | Brand Name: | KTC |
|---|---|---|---|
| Certification: | CCC | Model Number: | Thread Mill Cutter |
|
Detail Information |
|||
| Product Name: | End Mills | Raw Material: | GU25UF |
|---|---|---|---|
| Flutes No.: | 3/4 Flutes | Hardness: | >92HRA |
| Material: | Carbide | Precision: | High Precision |
| High Light: | thread end mill,thread cutting end mill |
||
Product Description
Aluminum Thread Mill Cutter / 3 4 Flute Carbide End Mill Bit CNC Milling

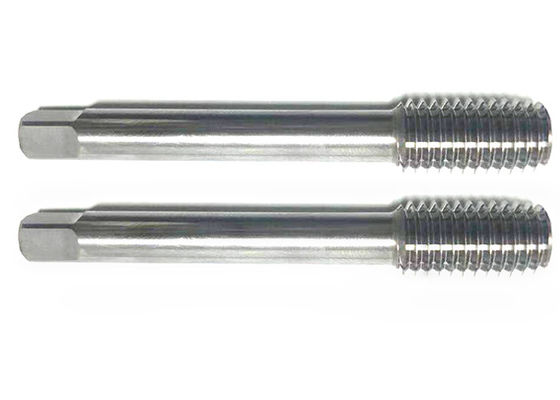

KTC Thread Mill Cutter
Specifications:
The tungsten steel thread milling cutter is made of high-quality ultrafine tungsten steel material at home and abroad, with bending strength of 4300mpa and particle size of 0.4μm. With this kind of tool, the cutting in thread milling of M1.0 and above can be completed in an instant. Innovative thread milling cutter: core hole drilling and thread milling can be completed in one working step with only one cutter. Especially, thread milling cutter is suitable for copper, aluminum, medium and high carbon steel, die steel, pre-hardened steel and other material hole processing.
| Raw Material | GU25UF |
| WC | 88% |
| Co | 12% |
| TRS | >4300N/mm2 |
| Hardness | >92HRA |
| A.O.L | 50mm-90mm |
| Grain size | 0.4 μm |
| Upto | HRC60 |
| Flutes No | 3/4F |
| Suitable for | Aluminum,plastic and other materials |
Standard Sizes
| UN 60° Inner Thread Mill Cutter for Aluminum | |||||||||
| Pitch (TPI) | UNC | UNF | UNEF | Shank Dia. | Edge Dia. | No. of Flutes | Flute Length | Overall Length | Bottom Hole Dia. |
| 36 | No.8-36 | 4 | 3 | 3 | 8.5 | 50 | 3.5 | ||
| 32 | No.10-32 | No.12-3/8-32 | 4 | 3.5 | 3 | 11.1 | 50 | 4 | |
| 28 | No.12-28,1/4-28 | 7/16,1/2-28 | 4 | 4 | 3 | 11.8 | 50 | 4.6 | |
| 28 | 1/4-28 | 7/16,1/2-28 | 6 | 5 | 3 | 12.7 | 57 | 5.5 | |
| 28 | 7/16,1/2-28 | 10 | 9.2 | 4 | 22.7 | 75 | 10.2 | ||
| 24 | No.10-24 | 5/16,3/8-24 | 9/16,11/16-24 | 4 | 3.2 | 3 | 10.6 | 50 | 3.8 |
| 24 | No.12-24 | 5/16,3/8-24 | 9/16,11/16-24 | 4 | 4 | 3 | 11.6 | 50 | 4.5 |
| 24 | 5/16,3/8-24 | 9/16,11/16-24 | 6 | 6 | 3 | 15.9 | 57 | 6.8 | |
| 24 | 3/8-24 | 9/16,11/16-24 | 8 | 7.8 | 3 | 19.1 | 60 | 8.5 | |
| 24 | 9/16,11/16-24 | 12 | 11.9 | 4 | 28.6 | 75 | 13.2 | ||
| 20 | 1/4-20 | 7/16,1/2-20 | 3/4,1-20 | 4 | 4 | 3 | 12.7 | 50 | 5.2 |
| 20 | 7/16,1/2-20 | 3/4,1-20 | 10 | 9 | 4 | 22.9 | 75 | 9.8 | |
| 20 | 1/2-20 | 3/4,1-20 | 10 | 10 | 4 | 25.4 | 75 | 11.5 | |
| 20 | 3/4,1-20 | 12 | 12 | 4 | 38.1 | 75 | 17.8 | ||
| 18 | 5/16-18 | 9/16 | 11/16,1-11/16-18 | 6 | 5.8 | 3 | 16.9 | 57 | 6.5 |
| 18 | 9/16,5/8-18 | 11/16,1-11/16-18 | 10 | 10 | 4 | 29.6 | 75 | 12.8 | |
| 16 | 3/8-16 | 3/4-16 | 8 | 7.6 | 3 | 19.1 | 60 | 8 | |
| 16 | 3/4-16 | 12 | 12 | 4 | 28 | 75 | 17.5 | ||
| 14 | 7/16-14 | 7/8-14 | 8 | 8 | 3 | 20 | 60 | 9.3 | |
| 14 | 7/8-14 | 16 | 16 | 4 | 39.9 | 90 | 20.5 | ||
| 13 | 1/2-13 | 8 | 8 | 3 | 20 | 60 | 10.8 | ||
| 12 | 9/16-12 | 1"1-1/2-12 | 10 | 10 | 4 | 28 | 75 | 12.3 | |
| 12 | 1"1-1/2-12 | 16 | 16 | 4 | 40 | 90 | 23.5 | ||
| 11 | 5/8-11 | 12 | 12 | 4 | 30 | 75 | 13.5 | ||
| 10 | 3/4-10 | 12 | 12 | 4 | 30 | 75 | 16.5 | ||
| 9 | 7/8-9 | 16 | 16 | 4 | 38 | 90 | 19.5 | ||
| 8 | 1-8 | 16 | 16 | 4 | 40 | 90 | 22 | ||
| UN 60° Outer Thread Mill Cutter for Aluminum | |||||||
| Pitch (TPI) | UNC | UNF | Shank Dia. | Edge Dia. | No. of Flutes | Flute Length | Overall Length |
| 32 | No.8-32 | 6 | 6 | 3 | 11.91 | 50 | |
| 28 | No.12-28 | 6 | 6 | 3 | 12.7 | 50 | |
| 24 | No.12-24 | 6 | 6 | 3 | 12.7 | 50 | |
| 20 | 1/4-20 | 6 | 6 | 3 | 15.4 | 50 | |
| 18 | 5/16-18 | 8 | 8 | 3 | 16.93 | 60 | |
| 16 | 3/8-16 | 8 | 8 | 3 | 19.05 | 60 | |
| 12 | 9/16-12 | 12 | 12 | 4 | 29.6 | 75 | |
| M ISO Standard 60°Inner Thread Mill Cutter for Steel | ||||||||
| Pitch (mm) | M Coarse Thread | M Fine Thread | Shank Dia. | Edge Dia. | No. of Flutes | Flute Length | Overall Length | Bottom Hole Dia. |
| 0.5 | M3*0.5 | 4 | 2.3 | 3 | 6 | 50 | 2.5 | |
| 0.5 | M6*0.5 | 4 | 4 | 3 | 10 | 50 | 5.5 | |
| 0.5 | M8-M12*0.5 | 6 | 6 | 3 | 13 | 50 | 7.5 | |
| 0.6 | M3.5*0.6 | 4 | 2.7 | 3 | 7 | 50 | 2.9 | |
| 0.7 | M4*0.7 | 4 | 3 | 3 | 8 | 50 | 3.3 | |
| 0.75 | M4.5*0.75 | 4 | 3.4 | 3 | 9 | 50 | 3.75 | |
| 0.75 | M10-M12*0.75 | 8 | 8 | 3 | 20 | 50 | 9.25 | |
| 0.8 | M5*0.8 | 4 | 4 | 3 | 10 | 50 | 4.2 | |
| 1 | M6*1.0 | 6 | 4.8 | 3 | 12 | 57 | 5.0 | |
| 1 | M8*1.0 | 6 | 6 | 3 | 16 | 57 | 7.0 | |
| 1 | M10*1.0 | 8 | 8 | 3 | 20 | 60 | 9.0 | |
| 1 | M12*1.0 | 10 | 10 | 4 | 22 | 75 | 11.0 | |
| 1 | M16*1.0 | 12 | 12 | 4 | 22 | 75 | 15.0 | |
| 1 | M20-M48*1.0 | 16 | 16 | 4 | 30 | 90 | 19.0 | |
| 1.25 | M8*1.25 | 6 | 6 | 3 | 16 | 57 | 6.75 | |
| 1.25 | M12-M14*1.25 | 10 | 10 | 4 | 25 | 75 | 10.75 | |
| 1.5 | M10*1.5 | 8 | 8 | 3 | 20 | 60 | 8.5 | |
| 1.5 | M12-M20*1.5 | 10 | 10 | 4 | 28 | 75 | 10.5 | |
| 1.5 | M14-M24*1.5 | 12 | 12 | 4 | 28 | 75 | 12.5 | |
| 1.5 | M20-M48*1.5 | 16 | 16 | 4 | 30 | 90 | 18.5 | |
| 1.75 | M12*1.75 | 10 | 9.8 | 4 | 30 | 75 | 10.25 | |
| 2 | M14*2.0 | M15-M16*2.0 | 10 | 10 | 4 | 30 | 75 | 12.0 |
| 2 | M16*2.0 | M17-M20*2.0 | 12 | 12 | 4 | 30 | 75 | 14.0 |
| 2 | M20-M80*2.0 | 16 | 16 | 4 | 40 | 90 | 18.0 | |
| 2.5 | M18-M20*2.5 | 14 | 14 | 4 | 36 | 85 | 15.5 | |
| 2.5 | M20-M80*2.5 | 16 | 16 | 4 | 40 | 90 | 17.5 | |
| 3 | M24*3.0 | 16 | 16 | 4 | 42 | 90 | 21.0 | |
| 0.75 | M6*0.75 | 6 | 4.8 | 3 | 12 | 60 | 5.25 | |
| 0.75 | M8*0.75 | 6 | 6 | 3 | 16 | 60 | 7.25 | |
| 1.25 | M10*1.25 | 8 | 8 | 3 | 20 | 60 | 8.75 | |
| M ISO Standard 60°Outer Thread Mill Cutter for Steel | ||||||
| Pitch (mm) | M Coarse Thread | Shank Dia. | Edge Dia. | No. of Flutes | Flute Length | Overall Length |
| 0.5 | M3*0.5 | 4 | 4 | 3 | 6 | 50 |
| 0.7 | M4*0.7 | 4 | 4 | 3 | 8 | 50 |
| 0.75 | M4.5*0.75 | 4 | 4 | 3 | 9 | 50 |
| 0.8 | M5*0.8 | 4 | 4 | 3 | 10 | 50 |
| 1 | M6*1.0 | 6 | 6 | 3 | 13 | 57 |
| 1.25 | M8*1.25 | 6 | 6 | 3 | 16 | 57 |
| 1.5 | M10*1.5 | 8 | 8 | 3 | 20 | 60 |
| 1.75 | M12*1.75 | 10 | 10 | 4 | 28 | 75 |
| 2 | M14*2.0 | 10 | 10 | 4 | 30 | 75 |
| 2.5 | M18*2.5 | 14 | 14 | 4 | 36 | 85 |
| 3 | M24*3.0 | 16 | 16 | 4 | 40 | 90 |
QC Profile
We have QC in the production, every production process has inspection, every step has strict inspection and control, quality inspection staff accounted for 25% of the total number of the company.
To ensure the quality of goods, before packaging, all goods have been inspected. With high precision quality control and full inspection, all our end mill cutters are delivered with 100% qualification rate.
