Custom CNC End Mill 2 Flute Micro End Mill Cutters For Drill Press

Minimum Order Quantity : 10 pcs Price : Negotiation
Packaging Details : 1PC/ PVC Packing, 10pcs PVC Packing/Pack... Delivery Time : 1-35days
Payment Terms : T/T, L/C,Paypal... Supply Ability : 10000pcs/week
Place of Origin: MADE IN CHINA Brand Name: KTC
Certification: CCC Model Number: Deep Groove V600

Detail Information

Product Name: Custom CNC End Mill 2 Flute Micro End Mill Cutters For Drill Press Raw Material: AF308/510
Coating: AlTiN Or TiSiN Color: Black/Copper
Hardness: >92HRA Cutting Diameter: Based On Flute Length
Upto: HRC60 Machine Type: CNC Milling Machine
High Light:

miniature end mills

,

end mill cutting tools

Product Description

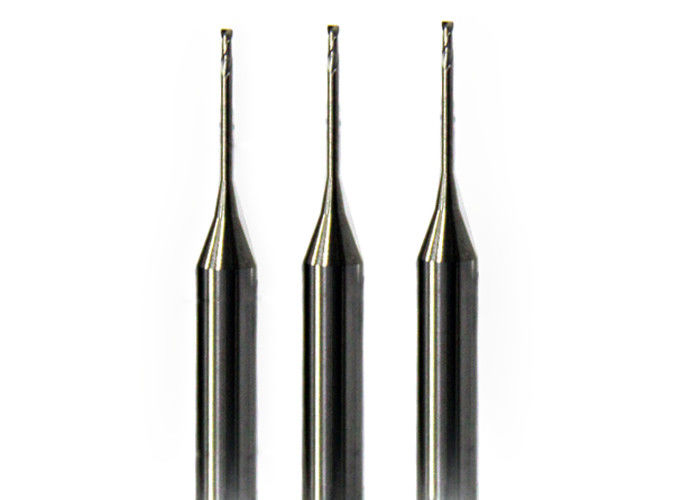

 Custom CNC End Mill 2 Flute Micro End Mill Cutters For Drill Press





End Mill Cut Varieties

Centre-cutting end mills are those that can be plunged straight down into the material. They can mill, and they can drill. (They have cutting edges on the end face and the sides) These are usually the 2 flutes or 3 flute endmills, and occasionally you can find some 4 flutes that are centre cutting as well.
Non-centre cutting end mills refers to those that mill, they do not drill. (they have cutting edges only on the sides)
Up-cut end mills eject chips towards the top of the workpiece, leaving a cleanly cut bottom surface inside your material.
Down-cut end mills do the opposite, they leave a smooth top surface on your material.
Compression end mills combine the best of both worlds and produce a smooth surface on both ends of the workpiece when cutting.



Specifications



Deep Groove V600 adopts high-quality high-quality ultra-fine grain tungsten steel material at home and abroad, with bending strength of 4500mpa and grain size of 0.2μm, including micro diameter milling cutter special for steel or aluminum, coating or no coating. The coating adopts AlTiN or TiSiN imported from Switzerland. Micro diameter milling cutters are all made of high-precision five axis grinding machines, such as ROLLOMATIC of Switzerland and MICRO of Germany, to ensure the accuracy of the cutters. With high precision quality control, and full inspection, all deep groove V600 series end mills are delivered with 100% qualification rate.



Raw Material AF308/510
WC 88%
Co 12%
TRS >4500N/mm2
Hardness >92HRA
A.O.L 50mm
Grain size 0.2μm
Upto HRC60
Flutes No 2F
Coating AlTiN or TiSiN
Suitable for Steel,stainless steel,nickel alloy,Titanium alloy,cast iron,plastic and other materials



Coating:

Item AlTiN TiSiN
Hardness(HV): 3200 3600
Thickness(μm): 2.5-3 3
Oxidation Temp(°): 900 1000
frictional Coefficient: 0.3 0.45
Color: Black Copper



Deep Groove Standard Sizes: Blade length and closed hole

Size Length of (Flute +Under Neck) Flute Length of End Mills(mm)
D0.2/R0.1*D4*50 1,2 0.4
D0.3/R0.15*D4*50 1,2,3 0.6
D0.4/R0.2*D4*50 2,3,4,6 0.8
D0.5/R0.25*D4*50 2,3,4,5,6,8 1
D0.6/R0.3*D4*50 3,4,5,6,8 1.2
D0.7/R0.35*D4*50 3,4,5,6,8,10 1.4
D0.8/R0.4*D4*50 3,4,5,6,8,10 1.6
D0.9/0.45*D4*50 3,4,5,6,8,10 1.8



Custom CNC End Mill  2 Flute Micro End Mill Cutters For Drill Press 0

FAQ:

Q1. What are your terms of packing?
A: Generally, we pack our goods in plastic tube then in carton, suitable for shipping container.
Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q3. What are your terms of delivery?
A: EXW, FOB, CFR, CIF.
Q4. How about your delivery time?
A: Generally, it will take 10 to 15 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings.
Q6. What is your sample policy?
A: We can supply the sample if we have ready parts in stock. custom sample is negotiatable.
Q7. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
Q8: How do you make our business long-term and good relationship?
A1:We keep excellent quality, thoughtful after-sales service and competitive price to ensure our customers' benefit;
A2:We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
