Miniature End Mills Cutter Tungsten Carbide 0.5mm Micro End Mill GU25UF Raw Material Made
Contact Person : KING
Phone Number : 86-18115005888
WhatsApp : +8618115005888
| Minimum Order Quantity : | 1PC | Price : | Negotiation |
|---|---|---|---|
| Packaging Details : | 1PC/ PVC Packing, 10pcs PVC Packing/Pack... | Delivery Time : | 1-35days |
| Payment Terms : | T/T, L/C,Paypal... | Supply Ability : | 10000pcs/week |
| Place of Origin: | MADE IN CHINA | Brand Name: | KTC |
|---|---|---|---|
| Certification: | CCC | Model Number: | Deep Groove V550 |
|
Detail Information |
|||
| Product Name: | Deep Groove Carbide Micro End Mills Stock Tungsten Carbide 2 Flute Square CNC Micro End Mill | Raw Material: | GU25UF |
|---|---|---|---|
| Coating: | AlTiN Or TiSiN | Color: | Black/Copper |
| Hardness: | >92HRA | Cutting Diameter: | Based On The Flute Length |
| Upto: | HRC55 | Machine Type: | CNC Milling Machine |
| Material: | Carbide | Precision: | High Precision |
| High Light: | end mill cutting tools,cnc end mill bits |
||
Product Description

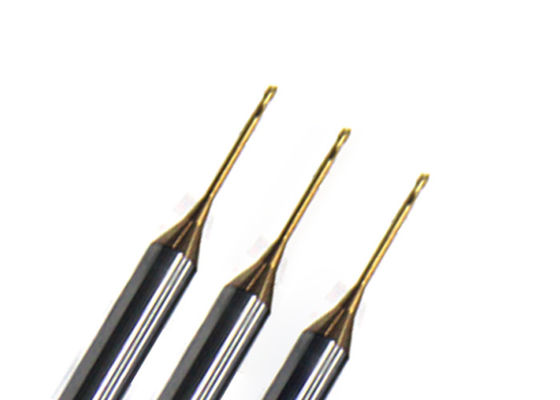

Deep Groove Carbide Micro End Mills Stock Tungsten Carbide 2 Flute Square CNC Micro End Mill
Specifications
Deep Groove V550 adopts high-quality high-quality ultra-fine grain tungsten steel material at home and abroad, with bending strength of 4300mpa and grain size of 0.4 μm, including micro diameter milling cutter special for steel or aluminum, coating or no coating. The coating adopts AlTiN or TiSiN imported from Switzerland. Micro diameter milling cutters are all made of high-precision five axis grinding machines, such as ROLLOMATIC of Switzerland and MICRO of Germany, to ensure the accuracy of the cutters. With high precision quality control, and full inspection, all deep groove V550 series end mills are delivered with 100% qualification rate.
Raw Material:
| Raw Material | GU25UF |
| WC | 88% |
| Co | 12% |
| TRS | >4300N/mm2 |
| Hardness | >92HRA |
| A.O.L | 50mm |
| Grain size | 0.4μm |
| Upto | HRC55 |
| Flutes No | 2F |
| Coating | AlTiN or TiSiN |
| Suitable for | Steel,stainless steel,nickel alloy,Titanium alloy,cast iron, aluminum,plastic and other materials |
Coating:
| Item | AlTiN | TiSiN |
| Hardness(HV): | 3200 | 3600 |
| Thickness(μm): | 2.5-3 | 3 |
| Oxidation Temp(°): | 900 | 1000 |
| frictional Coefficient: | 0.3 | 0.45 |
| Color: | Black | Copper |
Deep Groove Standard Sizes
| Size | Length of (Flute +Under Neck) | Flute Length of End Mills(mm) |
| D0.2/R0.1*D4*50 | 1,2 | 0.4 |
| D0.3/R0.15*D4*50 | 1,2,3 | 0.6 |
| D0.4/R0.2*D4*50 | 2,3,4,6 | 0.8 |
| D0.5/R0.25*D4*50 | 2,3,4,5,6,8 | 1 |
| D0.6/R0.3*D4*50 | 3,4,5,6,8 | 1.2 |
| D0.7/R0.35*D4*50 | 3,4,5,6,8,10 | 1.4 |
| D0.8/R0.4*D4*50 | 3,4,5,6,8,10 | 1.6 |
| D0.9/0.45*D4*50 | 3,4,5,6,8,10 | 1.8 |
Company Info:
Changzhou Xinpeng Tools Co., Ltd. is a professional manufacturer that runs standard end mills, rods, carbide shims, non-standard tools, etc. The company was established in 2003, and located in Xixiashu Town, the famous tool town of China. We are mainly engaged in cemented carbide tungsten steel square end mill, ball nose cutters, radius cutters, end mill for aluminum, roughing tools, cutter arbor, collet, insert shims turning insert, and the cutter head etc. Non-standard tools is also available. We have an advanced and complete sets of processing equipment and machine, We also owns our own professional research and development team that has contributes to the company a lot. Besides, high quality supervision system guarantees our products of high quality. We do expect your visit.
Raw Material
Super material is the basis of the tools. We choose the high performance material with good wear-resistance, high hardeness and high toughness.
Excellent Coating
Good coating can inprove tools life and production effiency, as well as slove the cutting problems.
World-Class Equipments. CNC,Rollomatic CNC,SAACKE CNC,TTB....Zoller G3 Measuring Equipments.
Wholesale Make Sure For Enough Stock And Fast Delivery.
Professional Team Give You 5 Stars Service. Not Only For Products, But Also We Care For Your Feeling.
