Product Description

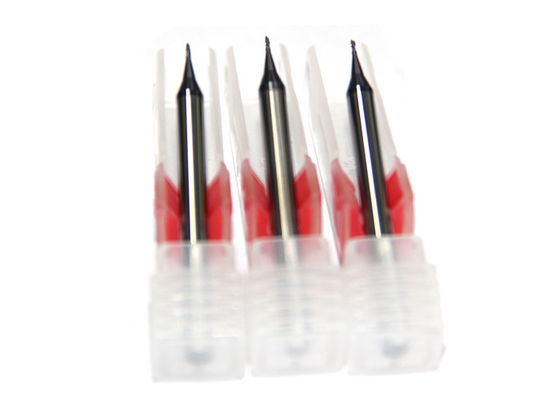

Two Flutes End Mill Micro End Milling High Accuracy Full Inspection
V600 adopts high-quality high-quality ultra-fine grain tungsten steel material at home and abroad, with bending strength of 4500mpa and grain size of 0.2μm, including micro diameter milling cutter special for steel or aluminum, coating or no coating. The coating adopts AlTiN or TiSiN imported from Switzerland. Micro diameter milling cutters are all made of high-precision five axis grinding machines, such as ROLLOMATIC of Switzerland and MICRO of Germany, to ensure the accuracy of the cutters. With high precision quality control, and full inspection, all V600 series end mills are delivered with 100% qualification rate.
| Raw Material |
AF308/510 |
| WC |
88% |
| Co |
12% |
| TRS |
>4500N/mm2 |
| Hardness |
>92HRA |
| A.O.L |
50mm |
| Grain size |
0.2μm |
| Upto |
HRC60 |
| Flutes No |
2F |
| Coating |
AlTiN or TiSiN |
| Suitable for |
Steel,stainless steel,nickel alloy,Titanium alloy,cast iron,plastic and other materials |
Coating:
| Item |
AlTiN |
TiSiN |
| Hardness(HV): |
3200 |
3600 |
| Thickness(μm): |
2.5-3 |
3 |
| Oxidation Temp(°): |
900 |
1000 |
| frictional Coefficient: |
0.3 |
0.45 |
| Color: |
Black |
Copper |
Standard Sizes:
| Size |
Flute Length of End Mills(mm) |
| D0.2/R0.1*D4*50 |
0.4 |
| D0.3/R0.15*D4*50 |
0.6 |
| D0.4/R0.2*D4*50 |
0.8 |
| D0.5/R0.25*D4*50 |
1 |
| D0.6/R0.3*D4*50 |
1.2 |
| D0.7/R0.35*D4*50 |
1.4 |
| D0.8/R0.4*D4*50 |
1.6 |
| D0.9/0.45*D4*50 |
1.8 |
| D0.35*D4*50 |
0.7 |
| D0.45*D4*50 |
0.9 |
| D0.55*D4*50 |
1.1 |
| D0.65*D4*50 |
1.3 |
| D0.75*D4*50 |
1.5 |
| D0.85*D4*50 |
1.7 |
Details:
1. Hardness type:HRC55, HRC60
2. Flutes:2 Flutes
3. Helix Angle: 35 degree
4. Centered Cutting: Yes
5. Type: Micro square end mill / Micro flat end mill
6. Workpiece material: Steel, mould steel, low alloy, hardened steel, staninless steel, high tempreture material
7. Coated: TiAlN, black;TiSiN,copper
8. Tool material:Micro grain solid carbide
9. Shank diameter:4.0MM
10. Overall length:50MM
11. Lathe:CNC lathe ,milling lathe
Product Description:
1. Chemical Composition: 10%Co-Wc
2. Raw Material:Super Micro grain with Diameter less than 0.2UM
3. International Industrial Standard: K10, K05-K15, K20-K30, K20-K40
4. Technology and Processing Equipment:
5. Application areas: Machining of cast iron, nonferrous alloy, chill cast iron, hard steel, stainless steel, plastic materials, fiberglass, carbon fiber and other non-metallic.
6. Served industries: Aerospace,Transportation,Medical Equipment,Military Manufacturing,Mold Development,etc.
Processing Equipment:
1. Grinding machine imported from Germany.
2. Grinding machine imported from Australia.
