No Coating Tungsten Carbide End Mills / Solid Carbide Milling Cutters

Minimum Order Quantity :	1PC	Price :	Negotiation
Packaging Details :	1PC/ PVC Packing, 10pcs PVC Packing/Pack...	Delivery Time :	1-35days
Payment Terms :	T/T, L/C,Paypal...	Supply Ability :	10000pcs/week

Place of Origin:	MADE IN CHINA	Brand Name:	KTC
Certification:	CCC	Model Number:	A380G

Detail Information
Product Name:	End Mills	Raw Material:	K40 & WF25
Upto:	HRC50	Hardness:	>91HRA
Cutting Diameter:	Based On The Flute Length	Suitable For:	Aluminum,plastic And Other Materials
Machine Type:	CNC Milling Machine	Material:	Carbide
High Light:	3 flute end mill aluminum , aluminum cutting end mills , 3f tungsten carbide end mills

Product Description

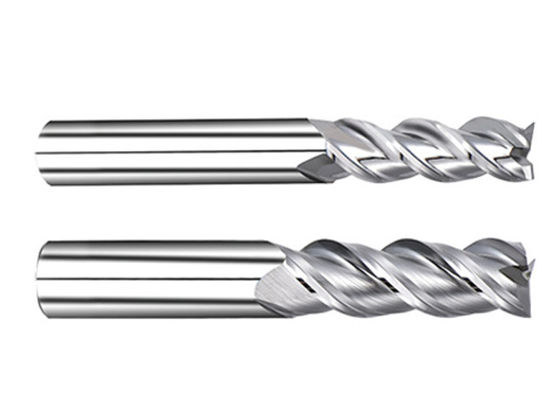

No Coating Tungsten Carbide End Mills / Solid Carbide Milling Cutters

KTC Tungsten Carbide End Mills for Aluminum

Specifications:
A80G high gloss aluminum milling cutter series adopt domestic high-quality fine grain tungsten steel material, flexural strength: 4100mpa, grain size: 0.6 μm, not easy to break the edge. A new special aluminum milling cutter with color coating is introduced, which increases the wear resistance of the cutter. The unique groove design and the polishing treatment of the front cutting edge and groove are adopted to increase the cutting performance. It is especially suitable for efficient and high gloss machining of aluminum alloy (6 and 7 series aluminum) materials. With high precision quality control, and full inspection, all A80G series end mills are delivered with 100% qualification rate.

Raw Material	K40 & WF25
TRS	>4100N/mm2
Hardness	>91HRA
A.O.L	50mm-150mm
Grain size	0.6 μm
Upto	HRC50
Flutes No	3F
Suitable for	Aluminum,plastic and other materials

Standard Sizes

Size	Flute Length of End Mills(mm)
Size	Aluminum Use
D1D450	3
D1.5D450	5
D2D450	6
D2.5D450	8
D3D450	9
D3D350	9
D3.5D450	11
D4D450	12
D1D650	3
D1.5D650	5
D2D650	6
D2.5D650	8
D3D650	9
D3.5D650	11
D4D650	12
D6D650	15
D6D650	18
D7D860	20
D8D860	24
D10*75	30
D12*75	35
D14*100	45
D16*100	45
D18*100	45
D20*100	45
Flute Length of Extended End Mills(mm)
D3D475	12
D4D475	16
D5D675	18
D6D675	25
D8*75	30
D3D4100	15
D4D4100	20
D5D6100	30
D6D6100	30
D8D8100	35
D10*100	40
D12*100	45
D6D6150	40
D8D8150	50
D10*150	55
D12*150	55
D14*150	60
D16*150	70
D18*150	70
D20*150	70

Definition

An end mill is a type of milling cutter, a cutting tool used in industrial milling applications. It is distinguished from the drill bit in its application, geometry, and manufacture. While a drill bit can only cut in the axial direction, a milling bit can generally cut in all directions, though some cannot cut axially.

End mills are used in milling applications such as profile milling, tracer milling, face milling, and plunging.
