Uncoated Aluminum End Mills Steel Milling Supported 3 Blades High Precision
Contact Person : KING
Phone Number : 86-18115005888
WhatsApp : +8618115005888
| Minimum Order Quantity : | 1PC | Price : | Negotiation |
|---|---|---|---|
| Packaging Details : | 1PC/ PVC Packing, 10pcs PVC Packing/Pack... | Delivery Time : | 1-35days |
| Payment Terms : | T/T, L/C,Paypal... | Supply Ability : | 10000pcs/week |
| Place of Origin: | MADE IN CHINA | Brand Name: | KTC |
|---|---|---|---|
| Certification: | CCC | Model Number: | A380 |
|
Detail Information |
|||
| Product Name: | End Mills | Raw Material: | K30 / YL10.2 |
|---|---|---|---|
| Upto: | HRC50 | Hardness: | >91HRA |
| Cutting Diameter: | Based On The Flute Length | Suitable For: | Aluminum,plastic And Other Materials |
| High Light: | 3 flute end mill aluminum,tungsten carbide end mill,Three Flute aluminum cutting end mills |
||
Product Description

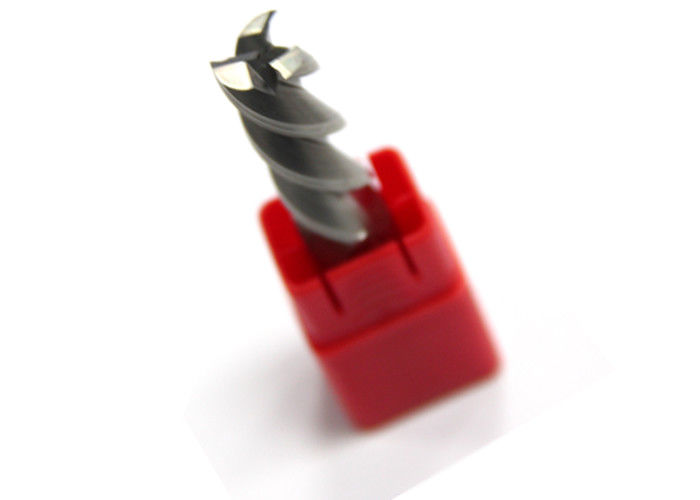

High Precision End Mill Cutting Tools Three Flute Cnc Lathe Cutting Support
KTC Tungsten Carbide End Mills for Aluminum
Specifications:
A380 high gloss aluminum milling cutter series adopt domestic high-quality fine grain tungsten steel material, flexural strength: 4100mpa, grain size: 0.8 μm, not easy to break the edge. A new special aluminum milling cutter with color coating is introduced, which increases the wear resistance of the cutter. The unique groove design and the polishing treatment of the front cutting edge and groove are adopted to increase the cutting performance. It is especially suitable for efficient and high gloss machining of aluminum alloy (6 and 7 series aluminum) materials. With high precision quality control, and full inspection, all A380 series end mills are delivered with 100% qualification rate.
| Raw Material | K30 / YL10.2 |
| TRS | >4100N/mm2 |
| Hardness | >91HRA |
| A.O.L | 50mm-150mm |
| Grain size | 0.8 μm |
| Upto | HRC50 |
| Flutes No | 3F |
| Suitable for | Aluminum,plastic and other materials |
Standard Sizes
| Size | Flute Length of End Mills(mm) |
| Aluminum Use | |
| D1*D4*50 | 3 |
| D1.5*D4*50 | 5 |
| D2*D4*50 | 6 |
| D2.5*D4*50 | 8 |
| D3*D4*50 | 9 |
| D3*D3*50 | 9 |
| D3.5*D4*50 | 11 |
| D4*D4*50 | 12 |
| D1*D6*50 | 3 |
| D1.5*D6*50 | 5 |
| D2*D6*50 | 6 |
| D2.5*D6*50 | 8 |
| D3*D6*50 | 9 |
| D3.5*D6*50 | 11 |
| D4*D6*50 | 12 |
| D6*D6*50 | 15 |
| D6*D6*50 | 18 |
| D7*D8*60 | 20 |
| D8*D8*60 | 24 |
| D10*75 | 30 |
| D12*75 | 35 |
| D14*100 | 45 |
| D16*100 | 45 |
| D18*100 | 45 |
| D20*100 | 45 |
| Flute Length of Extended End Mills(mm) | |
| D3*D4*75 | 12 |
| D4*D4*75 | 16 |
| D5*D6*75 | 18 |
| D6*D6*75 | 25 |
| D8*75 | 30 |
| D3*D4*100 | 15 |
| D4*D4*100 | 20 |
| D5*D6*100 | 30 |
| D6*D6*100 | 30 |
| D8*D8*100 | 35 |
| D10*100 | 40 |
| D12*100 | 45 |
| D6*D6*150 | 40 |
| D8*D8*150 | 50 |
| D10*150 | 55 |
| D12*150 | 55 |
| D14*150 | 60 |
| D16*150 | 70 |
| D18*150 | 70 |
| D20*150 | 70 |
FAQ
Q: Are you manufacturer or trading company?
A: We are a professional manufacturer almost 10 years.
Q: What is your advantage?
A: Always prioritizes high quality and competitive price;
Good technology support is a strong backing for our products;
We support you with good service, payment terms, lead time and logistics control.
Q: Is OEM available?
A: Yes, OEM and customization are available.
Q: Are samples available?
A: Free samples are available while freight is chargeable.
Q: What is your payment terms?
A: T/T,L/C,D/A,D/P,Paypal for different circumstances.
Q: What's your delivery way?
A: Express delivery, air shipping, sea shipping are available for your request.
Q: What's your delivery time?
A: Usual delivery time is 5-10days after recieving the advance payment;
For the customized product, 15-35days after receiving the advance payment.
