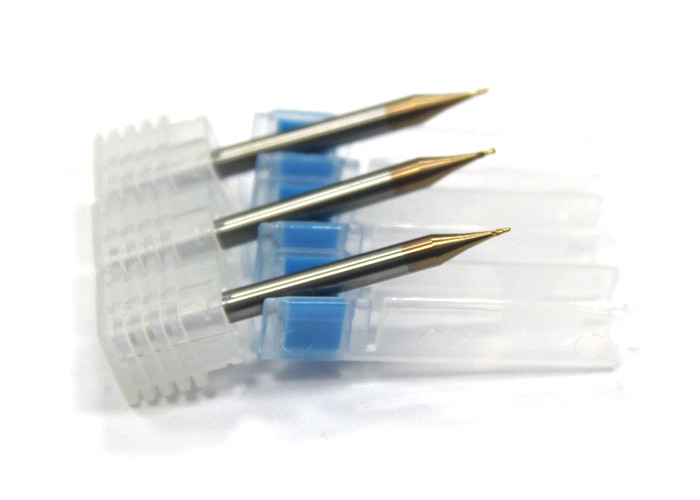

Carbide Miniature End Mills Cutter For Hardened Steel Plastic Titanium
Carbide Miniature End Mills Cutter For Hardened Steel Plastic Titanium Carbide Miniature End Mills Cutter For Hardened Steel Plastic Titanium
Contact Now

Carbide Miniature End Mills Cutter For Hardened Steel Plastic Titanium

Minimum Order Quantity : 1PC Price : Negotiation
Packaging Details : 1PC/ PVC Packing, 10pcs PVC Packing/Pack... Delivery Time : 1-35days
Payment Terms : T/T, L/C,Paypal... Supply Ability : 10000pcs/week
Place of Origin: MADE IN CHINA Brand Name: KTC
Certification: CCC Model Number: V500

Detail Information
Product Name: End Mills Raw Material: GU25UF
Coating: AlTiN Or TiSiN Color: Black/Copper
Hardness: >92HRA Cutting Diameter: As Requested
Upto: HRC55 Machine Type: CNC Milling Machine
Material: Carbide Precision: High Precision
High Light:

end mill cutting tools

,

cnc end mill bits

Product Description

Carbide Miniature End Mills Cutter For Hardened Steel Plastic Titanium




Micro Mill
Avail from us chamfer mill bits, micro mill square end mill, micro mill - drill tail bits, micro mill - single flute end mill bits, end mill bits - diamond cut and router bits. We, Taiwan Microdrill Co., Ltd. are expert at producing micro mill bits for applications, such as profile, tracer and face milling. The size as well flute length of each of the aforementioned micro mill bits can be customized. All of the cutting tools provided come with a small cutting diameter. These cutting tools are mainly attached to a desktop CNC machine, called micro mill for several applications, engraving, carving, drilling, naming a few. The 3-axis, computer-controlled milling machine produces precision parts. This machine uses micro mill bits for working on parts of several material, such as wood, plastic, brass, aluminum, etc.

Key Points:
These tools are applicable to high hardness material.
It can even cut through difficult-to-machine material.
These are designed for ultra-fine drilling of holes.
Each of the offered micro mill comes in several specifications, such as cutting diameter and cutting length.



Raw Material GU25UF
WC 88%
Co 12%
TRS >4300N/mm2
Hardness >92HRA
A.O.L 50mm
Grain size 0.4μm
HRC Upto HRC60
Flutes No 2F
Coating AlTiN or TiSiN
Suitable for Steel,stainless steel,nickel alloy,Titanium alloy,cast iron,plastic and other materials



Coating:



Item AlTiN TiSiN
Hardness(HV): 3200 3600
Thickness(μm): 2.5-3 3
Oxidation Temp(°): 900 1000
frictional Coefficient: 0.3 0.45
Color: Black Copper

Carbide Miniature End Mills Cutter For Hardened Steel Plastic Titanium 0

Standard Sizes:

Size Flute Length of End Mills(mm)
D0.2/R0.1*D4*50 0.4
D0.3/R0.15*D4*50 0.6
D0.4/R0.2*D4*50 0.8
D0.5/R0.25*D4*50 1
D0.6/R0.3*D4*50 1.2
D0.7/R0.35*D4*50 1.4
D0.8/R0.4*D4*50 1.6
D0.9/0.45*D4*50 1.8
D0.35*D4*50 0.7
D0.45*D4*50 0.9
D0.55*D4*50 1.1
D0.65*D4*50 1.3
D0.75*D4*50 1.5
D0.85*D4*50 1.7



For Advantage of our tungsten carbide end mill



Wide application: High efficiency machining can be achieved ranging from common steel to pre-hardened steel machining. Minimum hardness can reach to 70HRA
Optimized structure: Appropriate combination of sharp cutting edge and tool strength makes cutting easier and faster, extending tool life.
Versatile product series: Suitable for rough machining with high metal removal rate to finish machining with high surface quality.
Complete diameter range: Minimum diameter of 0.1mm for machining of the smallest parts.
Nano Coating: Different hardness with different coating. Customized coating. extending tool life.

Tag:

end mill cutting tools

cnc end mill bits

miniature end mills
